Product Summary
The LT1677IS8#TR is a low noise rail-to-rail precision op amp. Its applications include Low Noise Signal Processing, Microvolt Accuracy Threshold Detection, Strain Gauge Amplifiers, Tape Head Preamplifiers, Direct Coupled Audio Gain Stages, Infrared Detectors, Battery-Powered Microphones. The LT1677IS8#TR features the lowest noise performance available for a rail-to-rail operational amplifier: 3.2nV/rtHz wideband noise, 1/f corner frequency of 13Hz and 90nV peak-to-peak 0.1Hz to 10Hz noise.
Parametrics
LT1677IS8#TR absolute maximum ratings: (1)supply voltage: ±22V; (2)differential input current: ±20mA; (3)storage temperature range: -65 to 150℃; (4)lead temperature: 300℃; (5)operation temperature range: -40 to 85℃.
Features
LT1677IS8#TR features: (1)Low VOS Drift: 0.2µV/°C Typ; (2)Low Input Bias Current: 20nA Max; (3)Wide Supply Range: 3V to ±18V; (4)High AVOL: 7V/µV Min, RL = 10k; (5)High CMRR: 109dB Min.

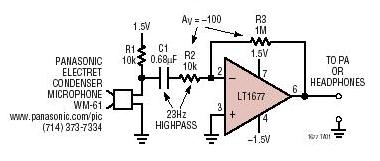

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1677IS8#TR |
|
IC OPAMP R-R I/O SGL LN 8SOIC |
Data Sheet |
|
|
||||||
|
LT1677IS8#TRPBF |
|
IC OPAMP R-R I/O SGL LN 8SOIC |
Data Sheet |
|
|
||||||
