Product Summary
The LT1714IGN#TR is an UltraFast 7ns,dual comparator featuring rail-to-rail inputs, rail-to-rail complementary outputs and an output latch. Optimized or 3V and 5V power supplies,LT1714IGN#TR operates over a single supply voltage range from 2.4V to 12V or from ±2.4V to ±6V dual supplies. The LT1714IGN#TR is designed for ease of use in a variety of systems. Applications of the LT1714IGN#TR include: high speed automatic test equipment, current sense for switching regulators, crystal oscillator circuits, high speed sampling circuits, high speed A/D converters, pulse width modulators, window comparators, extended range V/F converters, fast pulse height/width discriminators, line receivers, high speed triggers.
Parametrics
LT1714IGN#TR absolute maximum ratings: (1) Supply Voltage: V+ to V- : 12.6V,V+ to GND: 12.6V, V- to V+: -10V to 0.3V; (2) Differential Input Voltage: ±12.6V; (3) Latch Pin Voltage: 7V; (4) Input and Latch Current: ±10mA; (5) Output Current (Continuous) : ±20mA; (6) Operating Temperature Range: -40°C to 85°C; (7) Specified Temperature Range: -40°C to 85°C; (8) Junction Temperature: 150°C; (9) Storage Temperature Range: -65°C to 150°C; (10) Lead Temperature (Soldering, 10 sec) : 200°C.
Features
LT1714IGN#TR features: (1) Ultrafast: 7ns at 20mV Overdrive, 8.5ns at 5mV Overdrive; (2) Rail-to-Rail Inputs; (3) Rail-to-Rail Complementary Outputsfor 3V and 5V power supplies, they operate over a single (TTL/CMOS Compatible) ; (4) Specified at 2.7V, 5V and ±5V Supplies; (5) Low Power (Per Comparator) : 5mA; (6) Output Latch; (7) Inputs Can Exceed Supplies Without Phase Reversal; (8) LT1714: 16-Lead Narrow SSOP Package.

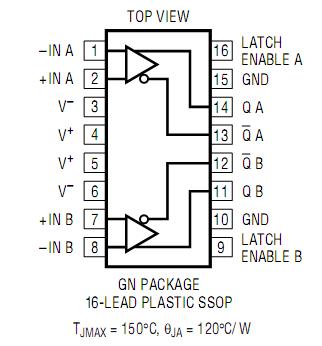

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1714IGN#TR |
|
IC COMP R-R I/O DUAL LP 16SSOP |
Data Sheet |
|
|
||||||
|
LT1714IGN#TRPBF |
|
IC COMP R-RINOUT DUAL 16-SSOP |
Data Sheet |
|
|
||||||
