Product Summary
The TMS320LF2403APAGA is a DSP controller.
Parametrics
TMS320LF2403APAGA absolute maximum ratings: (1)Program Memory Size: 32KB (16K x 16); (2)RAM Size: 2K x 8; (3)Number of I /O: 21; (4)Package / Cas:e 64-TQFP; (5)Speed: 40MHz; (6)Oscillator Type: Internal; (7)Packaging: Tray; (8)Program Memory Type: FLASH; (9)Core Processor: C2xx DSP; (10)Data Converters A/D: 8x10b; (11)Core Size: 16-Bit ; (12)Operating Temperature: -40℃~ 85℃; (13)Voltage Supply (Vcc/Vdd): 3 V ~ 3.6 V; (14)Lead Free Status: Lead Free.
Features
TMS320LF2403APAGA features: (1)External Memory Interface; (2)Watchdog (WD) Timer Module; (3)10-Bit Analog-to-Digital Converter (ADC); (4)High-Performance Static CMOS Technology; (5)Based on TMS320C2xx DSP CPU Core; (6)Flash (LF) and ROM (LC) Device Options; (7)Boot ROM (LF240xA Devices) SCI/SPI Bootloader.

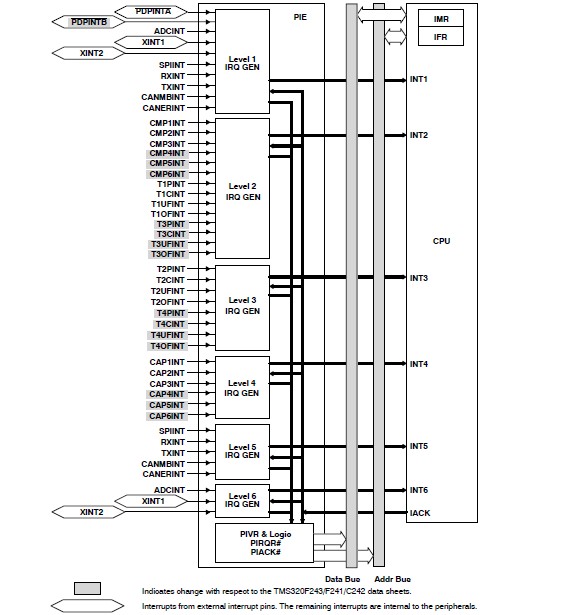

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TMS320LF2403APAGA |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) 16B FixedPt DSP |
Data Sheet |
|
|
|||||||||||||
