Product Summary
The LT1817CGN#TR is low power, high speed, very high slew rate operational amplifiers with excellent DC performance. The LT1817CGN#TR features higher bandwidth and slew rate, much lower input offset voltage and lower noise and distortion than other devices with comparable supply current. Applications of the LT1817CGN#TR include: Wideband Amplifiers, Buffers, Active Filters, Video and RF Amplification, Communication Receivers, Cable Drivers, Data Acquisition Systems.
Parametrics
LT1817CGN#TR absolute maximum ratings: (1) Supply Voltage (V+ to V- ) : 12.6V; (2) Differential Input Voltage(transient only) : ±6V; (3) Input Voltage: ±Vs; (4) Output Short-Circuit Duration: Indefinite; (5) Operating Temperature Range: -40°C to 85°C; (5) Specified Temperature Range: -40°C to 85°C; (6) Maximum Junction Temperature: 150°C(DD Package:125°C) ; (7) Storage Temperature Range: -65°C to 150°C (DD Package: 65 °C to 125°C ) ; (8) Lead Temperature (Soldering, 10 sec) : 300°C.
Features
LT1817CGN#TR features: (1) 220MHz Gain Bandwidth Product; (2) 1500V/μs Slew Rate; (3) 6.5mA Supply Current per Amplifier; (4) Space Saving MSOP and SSOP Packages; (5) Ultra Small SOT-23 and Leadless DFN Package; (6)Programmable Current Option; (7) 6nV/√Hz Input Noise Voltage; (8) Unity-Gain Stable; (9) 1.5mV Maximum Input Offset Voltage; (10) 8μA Maximum Input Bias Current; (11) 800nA Maximum Input Offset Current; (12) 50mA Minimum Output Current, Vout=±3V; (13) ±3.5V Minimum Input CMR, Vs=±5V; (14) Specified at ±5V, Single 5V Supplies; (15) Operating Temperature Range: -40°C to 85°C.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1817CGN#TR |
|

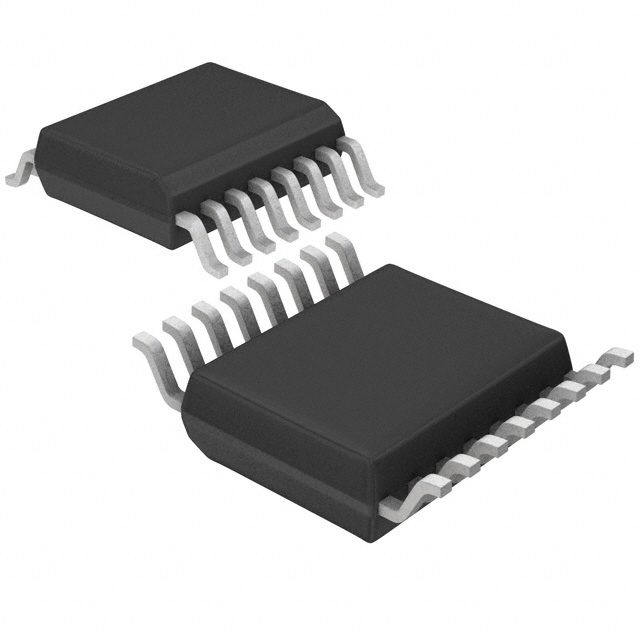

IC OP-AMP 220MHZ QUAD 16-SSOP |
Data Sheet |
|
|
||||||
|
LT1817CGN#TRPBF |
|
IC OP-AMP 220MHZ QUAD 16-SSOP |
Data Sheet |
|
|
||||||
