Product Summary

The ATTINY2313V-10SU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY2313V-10SU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATTINY2313V-10SU absolute maximum ratings: (1)Operating Voltages: 1.8 - 5.5V (ATtiny2313V); 2.7 - 5.5V(ATtiny2313); (2)Speed Grades: ATtiny2313V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V; ATtiny2313: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V; (3)Typical Power Consumption- Active Mode: 1 MHz, 1.8V: 230μA; 32 kHz, 1.8V: 20μA (including oscillator); Power-down Mode: < 0.1 μA at 1.8V.

Features

ATTINY2313V-10SU features: (1)Utilizes the AVRRISC Architecture; (2)AVR High-performance and Low-power RISC Architecture; (3)Data and Non-volatile Program and Data Memories; (4)Peripheral Features; (5)Special Microcontroller Features; (6)I/O and Packages; (7)Operating Voltages; (8)Speed Grades; (9)Typical Power Consumption.

Diagrams

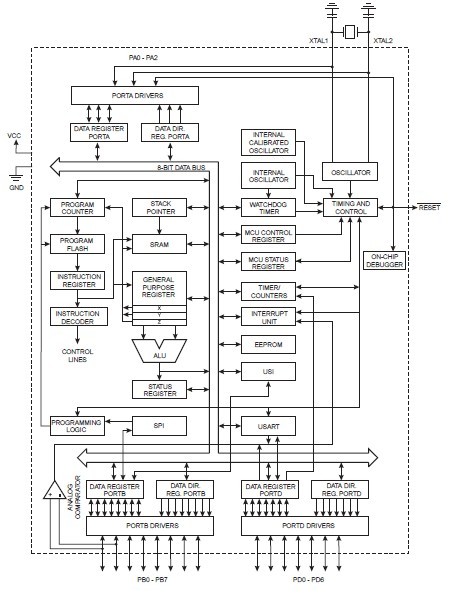

ATTINY2313V-10SU Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATtiny2313V-10SU
ATtiny2313V-10SU

Atmel

8-bit Microcontrollers (MCU) 2kB Flash 0.128kB EEPROM 18 I/O Pins

Data Sheet

0-1: $1.54
1-10: $1.28
10-25: $0.97
25-100: $0.86
ATTINY2313V-10SUR
ATTINY2313V-10SUR

Atmel

8-bit Microcontrollers (MCU) AVR 2KFL 128B EE1.8V 128B 1UART 20P-10MHz

Data Sheet

0-820: $0.90
820-1000: $0.88
