Product Summary
The LT4250HIS8#TR is a 8-pin, negative 48V Hot Swap (TM) controller that allows a board to be safely inserted and removed from a live backplane. Inrush current of the LT4250HIS8#TR is limited to a programmable value by controlling the gate voltage of an xternal N-channel pass transistor. And LT4250HIS8#TR for modules with a high enable input. Applications of the LT4250HIS8#TR include: Central Office Switching, -48V Distributed Power System, Negative Power Supply Control.
Parametrics
LT4250HIS8#TR absolute maximum ratings: (1) Supply Voltage(VDD-VEE) : -0.3V to 100V; (2) PWRGD, PWRGD Pins: -0.3V to 100V; (3) SENSE, GATE Pins: -0.3V to 20V; (4) UV, OV Pins: -0.3V to 60V; (5) DRAIN Pin: -2V to 100V; (6) Maximum Junction Temperature: 125°C; (7) Operating Temperature Range: -40°C to 85°C; (8) Storage Temperature Range: -65°C to 150°C; (9) Lead Temperature (Soldering, 10 sec): 300°C.
Features
LT4250HIS8#TR features: (1) Allows Safe Board Insertion and Removal from a Live -48V Backplan; (2) Circuit Breaker Immunity to Voltage Steps and Current Spikes; (3) Programmable Inrush and Short-Circuit Current Limits; (4) Operates from -20V to -80V; (5) Programmable Overvoltage Protection; (6) Programmable Undervoltage Lockout; (7) Power Good Control Output; (8) Bell-Core Compatible ON/OFF Threshold.

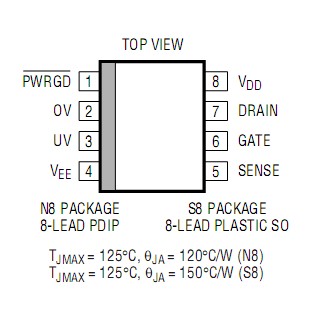

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT4250HIS8#TR |
|
IC CONTRLR HOTSWAP NEG 48V 8SOIC |
Data Sheet |
|
|
||||||
|
LT4250HIS8#TRPBF |
|
IC CONTRLR HOTSWAP NEG 48V 8SOIC |
Data Sheet |
|
|
||||||
