Product Summary
The LT4256-2IS8#TR is a high voltage Hot Swap(TM) controller that allows a board to be safely inserted and removed from a live backplane. An internal driver of the LT4256-2IS8#TR drives an external N-channel MOSFET switch to control supply voltages ranging from 10.8V to 80V. Applications of the LT4256-2IS8#TR include: hot board insertion, electronic circuit breaker/power bussing, industrial high side switch/circuit breaker, 24V/48V industrial/alarm systems, ideally suited for 12V, 24V and 48V distributed power systems, 48V telecom systems.
Parametrics
LT4256-2IS8#TR aboslute maximum ratings: (1) Supply Voltage: -0.3 to 100V; (2) Input Voltage (SENSE, PWRGD): -0.3 to 100V; (3) Input Voltage (GATE) : -0.3V to Vcc + 10V; (4) Maximum Input Current (GATE): 200μA; (5) Input Voltage (FB, UV) : -0.3 to 44V; (6) Input Voltage (TIMER) : -0.3 to 44V; (6) Maximum Input Current (TIMER) :100μA; (7) Operating Temperature: -40°C to 85°C ; (8) Storage Temperature Range: -65°C to 150°C; (9) Lead Temperature (Soldering, 10 sec) : 300°C.
Features
LT4256-2IS8#TR features: (1) Allows Safe Board Insertion and Removal from a Live Backplane; (2) Controls Supply Voltage from 10.8V to 80V; (3) Foldback Current Limiting; (4) Overcurrent Fault Detection; (5) Drives an External N-Channel MOSFET; (6) Programmable Supply Voltage Power-Up Rate; (7) Undervoltage Protectionl; (8) Available in an 8-Pin SO Package.

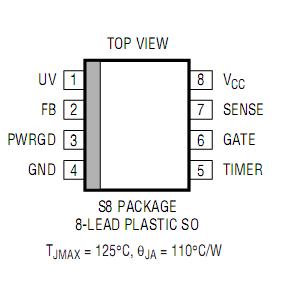

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT4256-2IS8#TR |
|
IC CTRLR HOTSWAP HV AUTO 8SOIC |
Data Sheet |
|
|
||||||
|
LT4256-2IS8#TRPBF |
|
IC CTRLR HOTSWAP HV AUTO 8SOIC |
Data Sheet |
|
|
||||||
