Product Summary
The LTC1064-7CSW#TR is a clock-tunable monolithic 8th order owpass filter with linear passband phase and flat group delay. The amplitude response of LTC1064-7CSW# approximates a maximally flat passband while it exhibits steeper roll-off than an equivalent 8th order Bessel filter. The cutoff frequency of the LTC1064-7CSW#TR is tuned via an external TTL or CMOS clock. And applications of LTC1064-7CSW# include: data communication filters, time delay networks and phase-matched filters.
Parametrics
LTC1064-7CSW#TR absolute maximum ratings: (1) Total Supply Voltage(V+ to V-) : 16 V; (2) Power Dissipation: 400 mA; (3) Burn-In Voltage: 16.5V; (4) Voltage at Any Input: (V- -0.3 V) ≤ VIN ≤ (V+ +0.3 V) ; (5) Storage Temperature Range: -65°C to 150°C; (6) Operating Temperature Range: LTC1064-7C: -40°C to 85°C, LTC1064-7M OBSOLETE: -55°C to 125°C; (7) Lead Temperature (Soldering, 10 sec) : 300°C.
Features
LTC1064-7CSW#TR features: (1) Steeper Roll-Off Than 8th Order Bessel Filters; (2) fCUTOFF up to 100kHz; (3) Phase Equalized Filter in 14-Pin Package; (4) Phase and Group Delay Response Fully Tested; (5) Transient Response Exhibits 5% Overshoot and No Ringing; (6) Wide Dynamic Range; (7) 72dB THD or Better Throughout a 50kHz Passband; (8) No External Components Needed; (9) Available in 14-Pin DIP and 16-Pin SO Wide Packages.

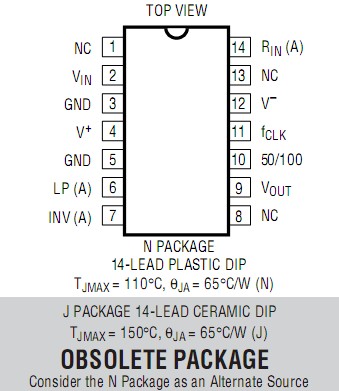

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

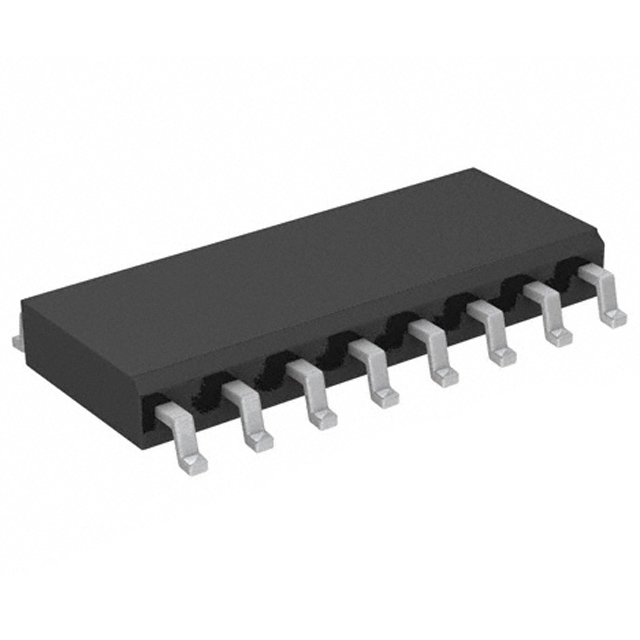

 LTC1064-7CSW#TR |
|
IC FILTER LP 8TH ORD LIN 16SOIC |
Data Sheet |
|
|
||||||
|
LTC1064-7CSW#TRPBF |
|
IC FILTR 8TH ORDR LOWPASS 16SOIC |
Data Sheet |
|
|
||||||
