Product Summary

The LTC1421CSW#TR is a Hot Swap controller that allows a board to be safely inserted and removed from a live backplane. Using external N-channel pass transistors, the board supply voltages can be ramped up at a programmable rate. Two high side switch drivers control the N-channel gates for supply voltages ranging from 3V to 12V. A programmable electronic circuit breaker protects against shorts. Warning signals indicate that the circuit breaker has tripped, a power failure has occurred or that the switch drivers are turned off. The applications of the LTC1421CSW#TR include Hot Board Insertion, Electronic Circuit Breaker.

Parametrics

LTC1421CSW#TR absolute maximum ratings: (1)Supply Voltage (VCCLO, VCCHI, AUXVCC): 13.2V; (2)Input Voltage (Analog Pins): -0.3V to (VCCHI + 0.3V); (3)Input Voltage (Digital Pins): -0.3V to 13.2V; (4)Output Voltage (Digital Pins): -0.3V to (VCCLO + 0.3V); (5)Output Voltage (CPON): -13.2V to (VCCLO + 0.3V); (6)Output Voltage (VOUTLO, VOUTHI): -0.3V to 13.2V; (7)Output Voltage (GATELO, GATEHI): -0.3V to 20V; (8)Operating Temperature Range: 0℃ to 70℃; (9)Storage Temperature Range: -65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1421CSW#TR features: (1)Allows Safe Board Insertion and Removal from a Live Backplane; (2)System Reset and Power Good Control Outputs; (3)Programmable Electronic Circuit Breaker; (4)User Programmable Supply Voltage Power-Up Rate; (5)High Side Driver for Two External N-Channels; (6)Controls Supply Voltages from 3V to 12V; (7)Connection Inputs Detect Board Insertion or Removal; (8)Undervoltage Lockout; (9)Power-On Reset Input.

Diagrams

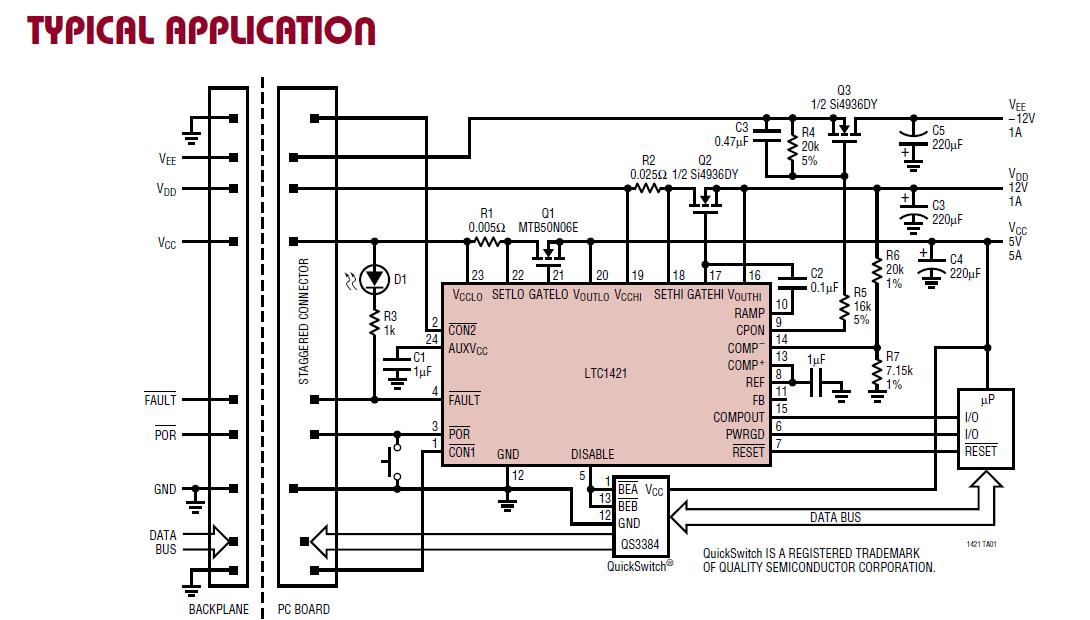

LTC1421CSW#TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LTC1421CSW#TR
LTC1421CSW#TR


IC CONTROLLER HOTSWAP ADJ 24SOIC

Data Sheet

0-2000: $3.33
LTC1421CSW#TRPBF
LTC1421CSW#TRPBF


IC CONTROLLER HOT SWAP 24-SOIC

Data Sheet

0-1000: $3.33
