Product Summary

The LTC2410CGN#TR is a 2.7V to 5.5V micropower 24-bit differential DS analog to digital converter with an integrated oscillator, 2ppm INL and 0.16ppm RMS noise. The LTC2410CGN#TR uses delta-sigma technology and provides single cycle settling time for multiplexed applications. Through a single pin, the LTC2410CGN#TR can be configured for better than 110dB input differential mode rejection at 50Hz or 60Hz ±2%, or it can be driven by an external oscillator for a user defined rejection frequency. The internal oscillator requires no external frequency setting components. Applications are direct sensor digitizer, weight scales, direct temperature measurement, gas analyzers, strain-gage transducers, instrumentation, data acquisition, industrial process control, 6-Digit DVMs.

Parametrics

LTC2410CGN#TR absolute maximum ratings: (1)Supply Voltage (VCC)to GND : –0.3V to 7V; (2)Analog Input Pins Voltage to GND : –0.3V to (VCC + 0.3V); (3)Reference Input Pins Voltage to GND : –0.3V to (VCC + 0.3V); (4)Digital Input Voltage to GND : –0.3V to (VCC + 0.3V); (5)Digital Output Voltage to GND : –0.3V to (VCC + 0.3V); (6)Operating Temperature Range: 0℃ to 70℃; (7)Storage Temperature Range : –65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC2410CGN#TR features: (1)Differential Input and Differential Reference with GND to VCC CommoMode Range; (2)2ppm INL, No Missing Codes; (3)2.5ppm Full-Scale Error; (4)0.1ppm Offset; (5)0.16ppm Noise; (6)Single ConversioSettling Time for Multiplexed Applications; (7)Internal Oscillator—No External Components Required; (8)110dB Min, 50Hz/60Hz Notch Filter; (9)24-Bit ADC iNarrow SSOP-16 Package (SO-8 Footprint); (10)Single Supply 2.7V to 5.5V Operation; (11)Low Supply Current (200mA)and Auto Shutdown; (12)Fully Differential Versioof LTC2400.

Diagrams

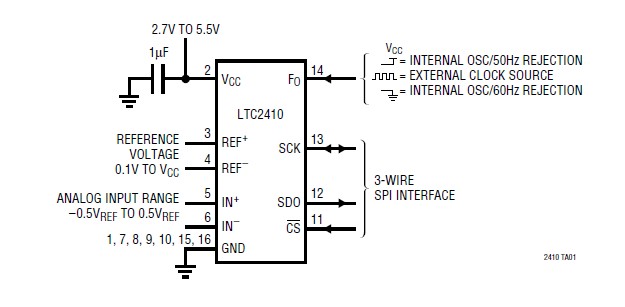

LTC2410CGN#TR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LTC2410CGN#TR
LTC2410CGN#TR


IC ADC 24BIT DIFF INP/REF 16SSOP

Data Sheet

0-2500: $3.66
LTC2410CGN#TRPBF
LTC2410CGN#TRPBF


IC ADC 24BIT DIFF INP/REF 16SSOP

Data Sheet

0-2500: $3.66
