Product Summary

The MAX6301ESA+T is a low-power microprocessor(μP) supervisory circuit. It provides maximum adjustability for reset and watchdog functions. The reset threshold can be adjusted to any voltage above 1.22V, using external resistors. The MAX6301ESA+T is available in the space-saving 8-pin μMAX package, as well as 8-pin PDIP and SO packages. The applications of the MAX6301ESA+T are Medical Equipment, Embedded Controllers, Intelligent Instruments, Critical μP Monitoring, Portable Equipment, Set-Top Boxes, Battery-Powered, Computers, Computers/Controllers.

Parametrics

MAX6301ESA+T absolute maximum ratings: (1)VCC:-0.3V to +7.0V; (2)RESET IN, SWT, SRT:-0.3V to (VCC + 0.3V); (3)WDI, WDS:-0.3V to +7.0V; (4)RESET, RESET:-0.3V to +7.0V; (5)Input Current:VCC:±20mA, GND:±20mA; (6)Output Current: RESET, RESET:±20mA; (7)Continuous Power Dissipation:471mW; (8)Operating Temperature Range:-40℃ to +85℃; (9)Storage Temperature Range:-65℃ to +160℃; (10)Lead Temperature (soldering, 10s):+300℃; (11)Soldering Temperature (reflow): Lead(Pb)-free:+260℃, Containing Lead (Pb):+240℃.

Features

MAX6301ESA+T features: (1)Adjustable Reset Threshold; (2)Adjustable Reset Timeout; (3)Adjustable Watchdog Timeout; (4)500x Watchdog Timeout Multiplier; (5)4μA Supply Current; (6)RESET or RESET Output Options; (7)Push-Pull or Open-Drain Output Options; (8)Guaranteed RESET Asserted At or Above VCC = 1V; (9)Power-Supply Transient Immunity; (10)Watchdog Function can be Disabled; (11)PDIP/SO/μMAX Packages Available.

Diagrams

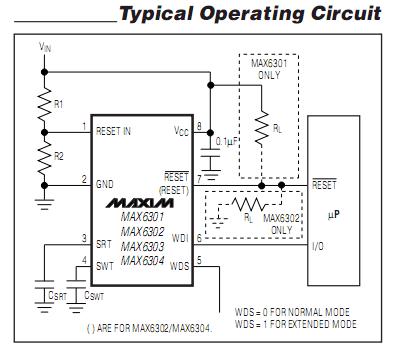

MAX6301ESA+T circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX6301ESA+T
MAX6301ESA+T

Maxim Integrated Products

Supervisory Circuits 5V uPower Supervisor

Data Sheet

0-2090: $1.11
2090-2500: $1.11
