Product Summary
The MC100EP01DR2 is a 4-input OR/NOR gate. The MC100EP01DR2 is functionally equivalent to the EL01 device, LVEL01, and E101 (a quad version). With AC performance much faster than the LVEL01 device, the EP01 is ideal for applications requiring the fastest AC performance available. The 100 Series contains temperature compensation.
Parametrics
MC100EP01DR2 absolute maximum ratings: (1)VCC PECL Mode Power Supply VEE = 0 V: 8 V; (2)VEE NECL Mode Power Supply VCC = 0 V: -8 V; (3)VI PECL Mode Input Voltage: 6V; (4)NECL Mode Input Voltage: -6V; (5)Iout Output Current Continuous: 100mA; (6)TA Operating Temperature Range: -40 to +85 °C; (7)Tstg Storage Temperature Range: -65 to +150 °C.
Features
MC100EP01DR2 features: (1)230 ps Typical Propagation Delay; (2)Maximum Frequency > 3 GHz Typical; (3)PECL Mode Operating Range: VCC = 3.0 V to 5.5 V with VEE = 0 V; (4)NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V to -5.5 V; (5)Open Input Default State; (6)Pb-Free Package is Available.

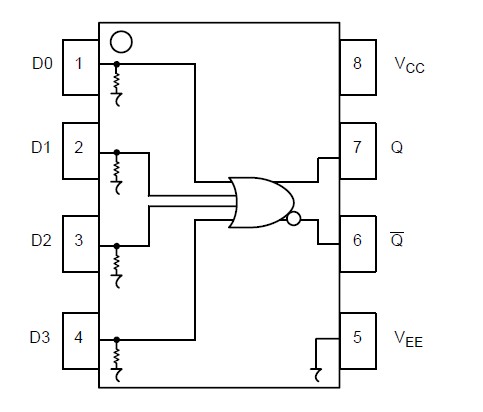

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC100EP01DR2 |
|
IC GATE OR/NOR ECL 4INPUT 8-SOIC |
Data Sheet |
|
|
||||||
|
MC100EP01DR2G |
|
IC GATE OR/NOR ECL 4INPUT 8-SOIC |
Data Sheet |
|
|
||||||
