MC100LVEL31DR2

Product Summary

The MC100LVEL31DR2 is a D flip-flop with set and reset. The device is functionally equivalent to the EL31 device but operates from a 3.3 V supply. With propagation delays and output transition times essentially equivalent to the EL31, the MC100LVEL31DR2 is ideally suited for those applications which require the ultimate in AC performance at low power supply voltages. Both set and reset inputs are asynchronous, level triggered signals. Data enters the master portion of the flip-flop when clock is LOW and is transferred to the slave, and thus the outputs, upon a positive transition of the clock.

Parametrics

MC100LVEL31DR2 absolute maximum ratings: (1)VCC PECL Mode Power Supply VEE = 0 V: 8 to 0 V; (2)VEE NECL Mode Power Supply VCC = 0 V: -8 to 0 V; (3)VI PECL Mode Input Voltage VEE = 0 V VI ≤ VCC: 6 to 0V; (4)NECL Mode Input Voltage VCC = 0 V VI ≤ VEE: -6 to 0V; (5)Iout Output Current Continuous: 50mA; (6)Iout Output Current Surge: 100mA; (7)TA Operating Temperature Range: -40 to +85℃; (8)Tstg Storage Temperature Range: -65 to +150℃; (9)θJA Thermal Resistance (Junction to Ambient): 0 lpfm 190℃/W, 500 lpfm 130℃/W; (10)θJC Thermal Resistance (Junction to Case) Standard Board: 41 to 44 ± 5% ℃/W; (11)θJA Thermal Resistance (Junction to Ambient): 0 lpfm 185℃/W, 500 lpfm 140℃/W; (12)θJC Thermal Resistance (Junction to Case) Standard Board: 41 to 44 ± 5% ℃/W; (13)θJA Thermal Resistance (Junction to Ambient): 0 lfpm 129℃/W, 500 lfpm 84℃/W; (14)Tsol Wave Solder Pb <2 to 3 sec @ 248℃: 265℃; (15)Tsol Wave Solder Pb-Free <2 to 3 sec @ 260℃: 265℃.

Features

MC100LVEL31DR2 features: (1)475 ps Typical Propagation Delay; (2)2.9 GHz Toggle Frequency; (3)ESD Protection: >4 kV Human Body Model, >200 V Machine Model; (4)The 100 Series Contains Temperature Compensation; (5)PECL Mode Operating Range: VCC = 3.0 V to 3.8 V with VEE = 0 V; (6)NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V to -3.8 V; (7)Internal Input Pulldown Resistors; (8)Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test; (9)Moisture Sensitivity Level 1 For Additional Information, see Application Note AND8003/D; (10)Flammability Rating: UL 94 V-0 @ 0.125 in, Oxygen Index: 28 to 34; (11)Transistor Count = 121 devices; (12)Pb-Free Packages are Available.

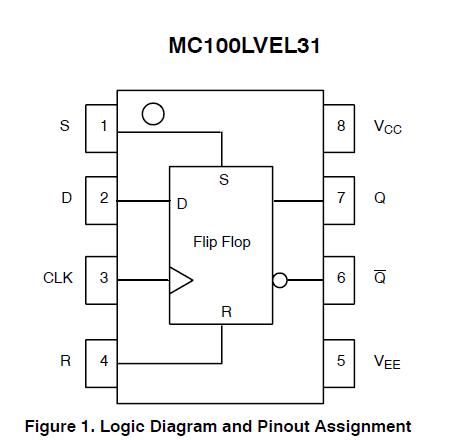

Diagrams
