Product Summary
The MC33060ADR2G is a low cost fixed frequency, pulse width modulation control circuit designed primarily for single-ended SWITCHMODE power supply control. The MC33060ADR2G is specified over an automotive temperature range of -40℃ to +85℃.
Parametrics
MC33060ADR2G absolute maximum ratings: (1)Power Supply Voltage VCC: 42 V; (2)Collector Output Voltage VC: 42 V; (3)Collector Output Current IC: 500 mA; (4)Amplifier Input Voltage Range Vin: - 0.3 to +42 V; (5)Power Dissipation @ TA ≤ 45℃ PD: 1000 mW; (6)Operating Junction Temperature TJ: 125℃; (7)Storage Temperature Range Tstg: -55 to +125℃; (8)Operating Ambient Temperature Range TA: -40 to +85℃.
Features
MC33060ADR2G features: (1)Complete Pulse Width Modulation Control Circuitry; (2)On-Chip Oscillator with Master or Slave Operation; (3)On-Chip Error Amplifiers; (4)On-Chip 5.0 V Reference, 1.5% Accuracy; (5)Adjustable Dead-Time Control; (6)Uncommitted Output Transistor Rated to 200 mA Source or Sink; (7)Undervoltage Lockout; (8)Pb-Free Packages are Available.

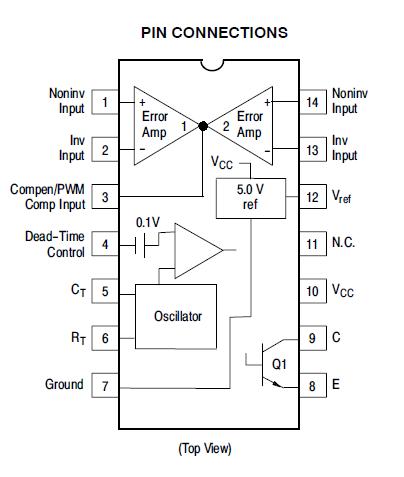

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33060ADR2G |
ON Semiconductor |
Voltage Mode PWM Controllers High Performance Voltage Mode PWM |
Data Sheet |
|
|
||||||||||||
