Product Summary

The MIC2076-1BM is a high-side MOSFET switch optimized for general-purpose power distribution requiring circuit protection. The MIC2076-1BM is internally current limited and has thermal shutdown that protects the device and load. The MIC2076-1BM offers “smart” thermal shutdown that reduces current consumption in fault modes. When a thermal shutdown fault occurs, the output is latched off until the faulty load is removed. Removing the load or toggling the enable input will reset the device output. The MIC2076-1BM employs soft-start circuitry that minimizes inrush current in applications where highly capacitive loads are employed. A fault status output flag is asserted during overcurrent and thermal shutdown conditions. Transient faults are internally filtered. The MIC2076-1BM is available in 8-lead SOP.

Parametrics

MIC2076-1BM absolute maximum ratings: (1)Supply Voltage (VIN): –0.3V to +6V; (2)Fault Flag Voltage (VFLG): +6V; (3)Fault Flag Current (IFLG): 25mA; (4)Output Voltage (VOUT): +6V; (5)Output Current (IOUT): Internally Limited; (6)Enable Input (IEN): –0.3V to VIN + 3V; (7)Storage Temperature (TS): –65℃ to +150 ℃.

Features

MIC2076-1BM features: (1)140mΩ maximum on-resistance per channel; (2)2.7V to 5.5V operating range; (3)500mA minimum continuous current per channel; (4)Short-circuit protection with thermal shutdown; (5)Thermally isolated channels; (6)Fault status flag with 3ms filter eliminates false assertions; (7)Undervoltage lockout; (8)Reverse current flow blocking (no "body diode"); (9)Circuit breaker mode; (10)Logic-compatible inputs; (11)Soft-start circuit; (12)Low quiescent current.

Diagrams

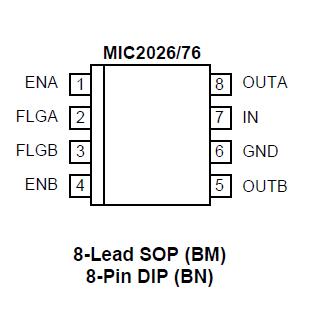

MIC2076-1BM pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MIC2076-1BM
MIC2076-1BM


IC DISTRIBUTION SW DUAL 8-SOIC

Data Sheet

Negotiable
MIC2076-1BM TR
MIC2076-1BM TR


IC DISTRIBUTION SW DUAL 8-SOIC

Data Sheet

Negotiable
