MIC2544-1YM

Programmable Current Limit High-Side Switch, 8-SOP, MIC2544-1YM, 2.7V to 5.5V, 1.5A, 120mΩ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: MIC2544-1YM

Brand:: Micrel Semiconductor - Micrel | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MIC2544-1YM
US $0.15 - 2.40
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

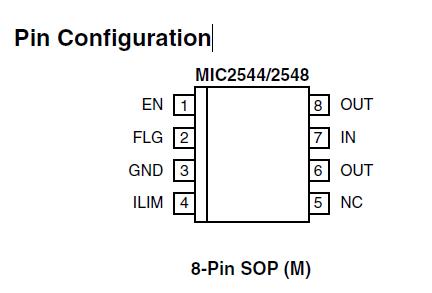

The MIC2544-1YM is an integrated high-side power switch optimized for low loss dc power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI). The MIC2544-1YM is a cost-effective, highly integrated solution that requires few external components to satisfy USB and ACPI requirements. Load current management features include a precision resistor-programmable output current-limit and a soft-start circuit which minimizes inrush current when the switch is enabled. Thermal shutdown, along with current-limit, protects the switch and the attached device. The MIC2544-1YM’s open-drain flag output is used to indicate current-limiting or thermal shutdown to a local controller. The enable signal is compatible with both 3V and 5V logic. The MIC2544-1YM is available in active-high and active-low enable version in the 8-pin SOP (small-outline package).

Parametrics

MIC2544-1YM absolute maximum ratings: (1)Supply Voltage (VIN): +6.0V; (2)Output Voltage (VOUT): +6.0V; (3)Output Current (IOUT): Internally Limited; (4)Enable Input (VEN): –0.3V to VIN+0.3V; (5)Fault Flag Voltage (VFLG): +6.0V; (6)Fault Flag Current (IFLG): 50mA; (7)Storage Temperature (TS): –65℃ to +150℃; (8)Junction Temperature (TJ): Internally Limited; (9)Lead Temperature (soldering 5 sec.): 260℃; (10)ESD Rating: 2kV.

Features

MIC2544-1YM features: (1)2.7V to 5.5V input; (2)Adjustable current-limit up to 1.5A; (3)Reverse current flow blocking (no "body diode"); (4)75μA typical on-state supply current; (5)1μA typical off-state supply current; (6)120mΩ maximum on-resistance; (7)Open-drain fault flag; (8)Thermal shutdown; (9)2ms (slow) turn-on and fast turnoff; (10)Available with active-high or active-low enable.
