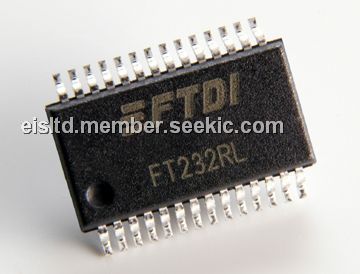

FT232RL-REEL

Product Summary

The FT232RL-REEL is the latest device to be added to FTDI range of USB UART interface Integrated Circuit Devices. The FT232RL-REEL is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID. security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232RL-REEL have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device. The FT232RL-REEL adds two new functions compared with its predecessors, effectively making it a 3-in-1 chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A unique number (the FTDIChip-ID.) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to protect customer application software from being copied.

Parametrics

FT232RL-REEL absolute maximum ratings: (1)Storage Temperature: -65℃ to 150℃; (2)Floor Life (Out of Bag) At Factory Ambient ( 30℃ / 60% Relative Humidity): 168 Hours (IPC/JEDEC J-STD-033A MSL Level 3 Compliant); (3)Ambient Temperature (Power Applied): -40℃ to 85℃; (4)Vcc Supply Voltage: -0.5 to +6.00V; (5)D.C. Input Voltage - USBDP and USBDM: -0.5 to +3.8V; (6)D.C. Input Voltage - High Impedance Bidirectionals: -0.5 to +(Vcc +0.5)V; (7)D.C. Input Voltage - All other Inputs: -0.5 to +(Vcc +0.5)V; (8)D.C. Output Current - Outputs: 24mA; (9)DC Output Current - Low Impedance Bidirectionals: 24 mA; (10)Power Dissipation (Vcc = 5.25V): 500mW.

Features

FT232RL-REEL features: (1)Single chip USB to asynchronous serial data transfer interface; (2)Entire USB protocol handled on the chip - No USB-specific firmware programming required.; (3)UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.; (4)Fully assisted hardware or X-On / X-Off software handshaking. New configurable CBUS I/O pins.; (5)Auto transmit buffer control for RS485 applications.; (6)Transmit and receive LED drive signals. New CBUS bit bang mode option.; (7)Integrated 1024 Bit internal EEPROM for storing USB VID, PID, serial number and product description strings, and CBUS I/O configuration.; (8)Device supplied preprogrammed with unique USB serial number.; (9)Support for USB suspend and resume. 3.3V to 5.25V Single Supply Operation.; (10)Low operating and USB suspend current.; (11)Low USB bandwidth consumption.; (12)UHCI / OHCI / EHCI host controller compatible; (13)USB 2.0 Full Speed compatible. -40℃ to 85℃ extended operating temperature range.; (14)Available in compact Pb-free 28 Pin SSOP and QFN-32 packages (both RoHS compliant).

Diagrams
