Product Summary

The MJE253G is a complementary silicon power plastic transistor. The MJE253G is designed for low power audio amplifier and low-current, high-speed switching applications.

Parametrics

MJE253G absolute maximum ratings: (1)Collector-Emitter Voltage, VCEO: 100 Vdc; (2)Collector-Base Voltage, VCB: 100 Vdc; (3)Emitter-Base Voltage, VEB: 7.0 Vdc; (4)Collector Current - Continuous, IC: 4.0Adc; -Peak, IC: 8.0Adc; (5)Base Current, IB: 10 Adc; (6)Total Power Dissipation @ TC = 25℃, PD: 15 W; Derate above 25℃, PD: 120 mW/℃; (7)Total Power Dissipation @ TA = 25℃, PD: 1.5 W; Derate above 25℃, PD: 12 mW/℃; (8)Operating and Storage Junction Temperature Range, TJ, Tstg: -65 to +150℃.

Features

MJE253G features: (1)High Collector-Emitter Sustaining Voltage - VCEO(sus) = 100 Vdc (Min); (2)High DC Current Gain @ IC = 200 mAdc hFE = 40-200; = 40-120; (3)Low Collector-Emitter Saturation Voltage - VCE(sat) = 0.3 Vdc (Max) @ IC = 500 mAdc; (4)High Current Gain Bandwidth Product - fT = 40 MHz (Min) @ IC = 100 mAdc; (5)Annular Construction for Low Leakages ICBO = 100 nAdc (Max) @ Rated VCB; (6)Pb-Free Packages are Available.

Diagrams

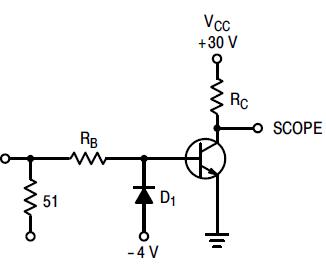

MJE253G circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MJE253G
MJE253G
ON Semiconductor
Transistors Bipolar (BJT) 4A 100V 15W PNP
Data Sheet
0-1: $0.32
1-25: $0.26
25-100: $0.20
100-500: $0.17
