MM74C912N

MM74C912N, 6-Digit BCD Display Controller/Driver, 28-DIP, 6.5V, 2mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~1.60

PartNumber:: MM74C912N

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-08

From Other Seller

Part Number:MM74C912N
US $0.20 - 1.60
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
AT24C02BN-SH-T

US $0.08 - 0.15 / Piece
(0) Remove
Quantity:

piece

Product Summary

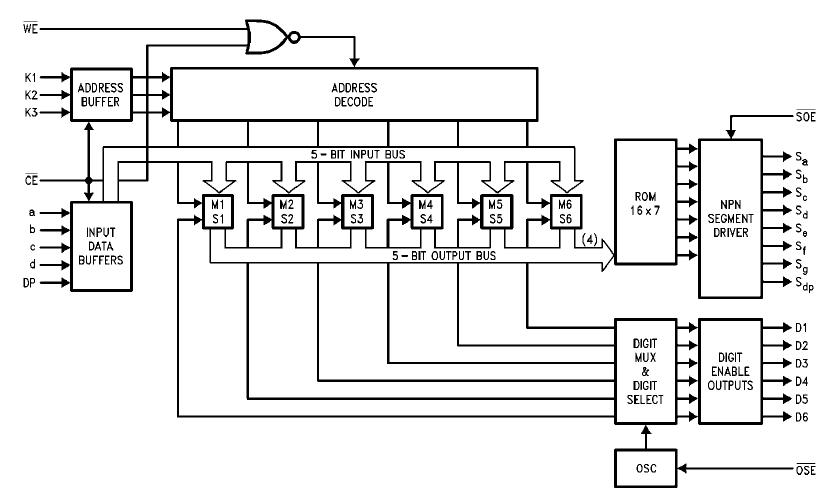

The MM74C912N is a 6-Digit BCD Display Controller/Driver. The MM74C912N is interface elements, with memory, that drive a 6-digit, 8-segment LED display. The MM74C912N receives data information through 5 data inputs A, B, C, D and DP, and digit information through 3 address inputs K1, K2 and K3. The input data is written into the register selected by the address information when CHIP ENABLE, (CE), and WRITE ENABLE, (WE), are LOW and is latched when either CE or WE return HIGH. Data hold time is not required. A self-contained internal oscillator sequentially presents the stored data to a decoder where 4 data bits control the format of the displayed character and 1 bit controls the decimal point. The internal oscillator is controlled by a control input labeled OSCILLATOR ENABLE, (OSE), which is tied LOW in normal operation. A high level at OSE prevents automatic refresh of the display.

Parametrics

MM74C912N absolute maximum ratings: (1)Voltage at Any Pin Except Inputs: -0.3V to VCC +0.3V; (2)Voltage at Any Input: -0.3V to +15V; (3)Operating Temperature Range (TA): -40℃ to +85℃; (4)Storage Temperature Range (TS): -65℃ to +150℃; (5)Power Dissipation (PD): Refer to PD MAX vs TA Graph; (6)Operating VCC Range: 3V to 6V; (7)Absolute Maximum (VCC): 6.5V; (8)Lead Temperature (Soldering, 10 seconds): 260℃.

Features

MM74C912N features: (1)Direct segment drive (100 mA typ.) 3-STATE; (2)6 registers addressed like RAM; (3)Internal oscillator and scanning circuit; (4)Direct base drive to digit transistor (20 mA typ.); (5)Internal segment decoder; (6)TTL compatible inputs.
