Product Summary

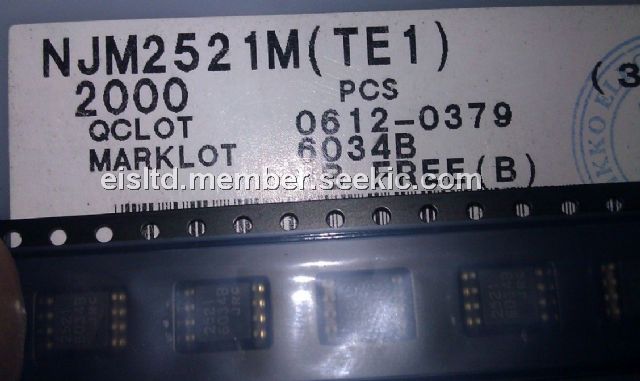

The NJM2521M is a 58kΩ input impedance 3--input 1-output audio switch. It contains two bias-type inputs and one buffer-type output.
Parametrics
NJM2521M absolute maximum ratings: (1)Supply voltage, V+: +15V; (2)Power dissipation, PD: 300mW; (3)Operating temperature range, TOPR: -20 to +75℃; (4)Storage temperature range, Tstg: -40 to +125℃.
Features
NJM2521M features: (1)Operating voltage: +4.75V to +13V; (2)Crosstalk: (-70dB type.); (3)Input impedance: (58kΩ type.); (4)3-input, 1-output; (5)Bipolar technology; (6)Package outline: DIP8, DMP8, SIP8, SSOP8.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM2521M# |
NJR |
IC AUDIO SWITCH 3-IN/1-OUT 8-DMP |
Data Sheet |
|
|
||||||||||||
 |
NJM2521M-TE1 |
NJR |
Switch ICs - Various 2-In/1-Out Switch |
Data Sheet |
|
|
||||||||||||
|
NJM2521M-TE2 |
NJR |
Switch ICs - Various 2-Input 1-Output Audio Switch |
Data Sheet |
|
|
||||||||||||
|
NJM2521M-TE4 |
NJR |
Switch ICs - Various 2-In/1-Out Switch |
Data Sheet |
Negotiable |
|
||||||||||||
|
NJM2521M |
NJR |
Switch ICs - Various 2-In/1-Out Switch |
Data Sheet |
|
|
||||||||||||
