88E6060-RCJ1

Product Summary

The 88E6060-RCJ1 is a single chip integration of a complete 6-port Fast Ethernet switch with support for a CPU connection. The 88E6060-RCJ1 is designed for cost-sensitive low port count switch systems and firewall routers. The applications of the 88E6060-RCJ1 are Firewall Router Switch w/four 10/100BASE-T LAN ports & one 10/100BASE-T WAN port, Five port Switch with Spanning Tree Support, Firewall Router Switch supporting a Fiber WAN port, Fiber to Copper Industrial Temperature media converter, Four-port LAN switch with two MII connections for WAN PHY and wireless interface.

Parametrics

88E6060-RCJ1 absolute maximum ratings: (1)Power Supply Voltage on VDDO with respect to VSS: -0.5V to +3.6V ; (2)Power Supply Voltage on VDDAH with respect to VSS: -0.5V to +3.6V or VDD(3.3)+0.5V whichever is less; (3)Power Supply Voltage on VDD, or VDDAL with respect to VSS: -0.5V to +3.6V or VDD(2.5)+0.5V whichever is less; (4)Voltage applied to any input pin with respect to VSS: -0.5V to +3.6V or VDDO+0.5V whichever is less; (5)Storage temperature:-55℃ to +125℃.

Features

88E6060-RCJ1 features: (1)Single chip integration of a 6-port Fast Ethernet switch in a 14x20 mm 128-pin PQFP package; (2)Integrates six independent media access controllers fully compliant with the applicable sections of IEEE802.3; (3)Integrates five independent Fast Ethernet PHY transceivers fully compliant with the applicable sections of IEEE802.3 ; (4)Supports 802.1X implementation with Port-based access control; (5)Port based VLANs supported in any combination; (6)Supports a CPU header mode for accelerated router performance and wirespeed VLAN control ; (7)Port States & BPDU handling supports Spanning Tree; (8)Automatic MDI/MDIX crossover for 100BASE-TX and 10BASE-T ports; (9)Port 0 and Port 1 can be configured as copper (100BASE-TX or 10BASE-T) or fiber (100BASE-FX); (10)Each port works at 10 Mbps or 100 Mbps, full-duplex or half duplex mode (forced or auto-negotiated); (11)Back-pressure flow control on half-duplex ports & Pause-frame flow control on full-duplex ports; (12)Shared on-chip memory-based switch fabric with true non-blocking switching performance ; (13)High performance lookup engine with support for up to 1,024 MAC address entries with automatic learning and aging ; (14)Flexible LED support for Link, Speed, Duplex Mode, Collision, and Tx/Rx Activities; (15)Supports a low cost 25 MHz XTAL clock source or a 25 MHz or 50 MHz OSC.

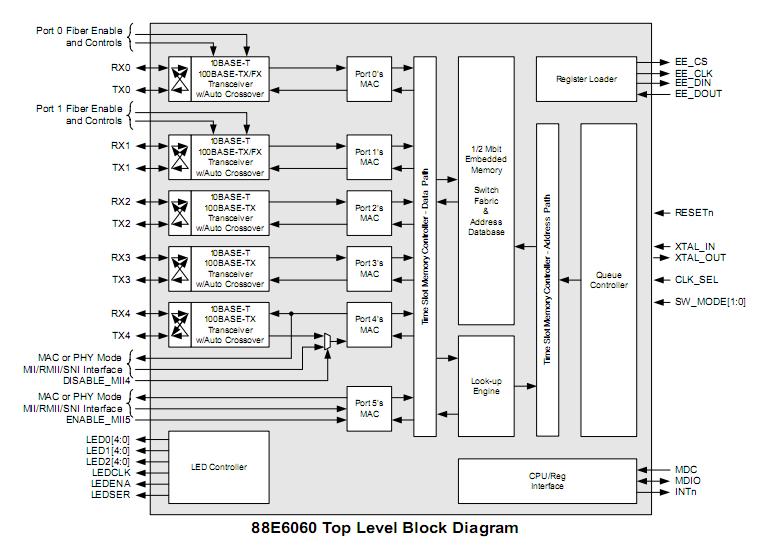

Diagrams
