Product Summary

The OP249GSZ is a high speed precision dual JFET op amp similar to the popular single op amp, the OP42. The OP249GSZ outperforms available dual amplifiers by providing superior speed with excellent dc performance. Ultrahigh open-loop gain (1 kV/mV minimum), low offset voltage and superb gain linearity, makes the OP249GSZ the industry first true precision, dual high speed amplifier.

Parametrics

OP249GSZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±18 V; (3)Differential Input Voltage: 36 V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range: –65℃ to +175℃; (6)Operating Temperature Range: –40℃ to +85℃; (7)Junction Temperature: –65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): +300℃.

Features

OP249GSZ features: (1)Fast slew rate: 22 V/μs typ; (2)Settling Time (0.01%):1.2 μs max; (3)Offset Voltage:300 μV max; (4)High Open-Loop Gain: 1000 V/mV min; (5)Low Total Harmonic Distortion: 0.002% typ; (6)Available in Die Form.

Diagrams

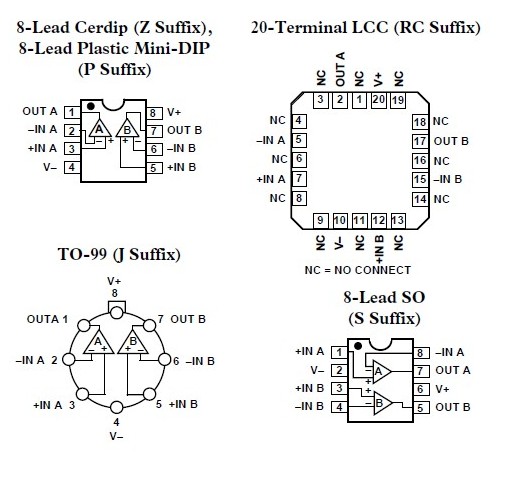

 OP249GSZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
OP249GSZ
OP249GSZ


IC OPAMP JFET 4.7MHZ DUAL 8SOIC

Data Sheet

0-1: $2.71
1-10: $2.42
10-100: $1.98
100-250: $1.79
250-500: $1.60
500-1000: $1.35
1000-2500: $1.29
