PIC16LF1904-I/MV

PIC16LF1904-I/MV, 8-Bit CMOS Microcontroller, 40-UFQFN, 4V, 300mA, Microchip Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~1.60

PartNumber:: PIC16LF1904-I/MV

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-06

From Other Seller

Part Number:PIC16LF1904-I/MV
US $0.20 - 1.60
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

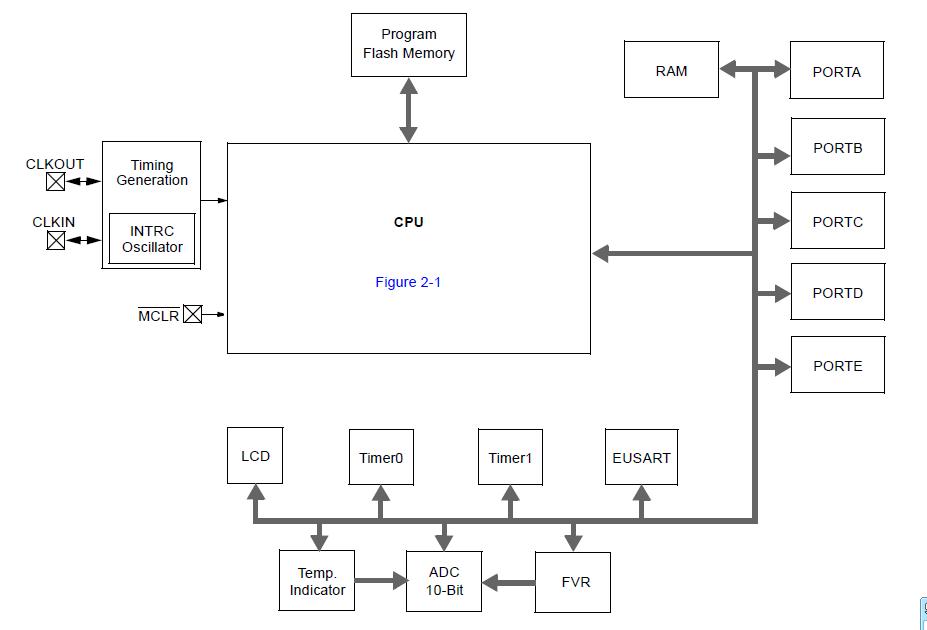

The PIC16LF1904-I/MV is a Flash-Based, 8-Bit CMOS Microcontroller with LCD Driver and nanoWatt XLP Technology. The PIC16LF1904-I/MV is available in 40-pin packages.

Parametrics

PIC16LF1904-I/MV absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +4.0V; (4)Voltage on MCLR with respect to Vss: -0.3V to +9.0V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin, -40℃ ≤ TA ≤ +85℃ for industrial: 300 mA; (8)Maximum current out of VSS pin, -40℃ ≤ TA ≤ +125℃ for extended: 95 mA; (9)Maximum current into VDD pin, -40℃ ≤ TA ≤ +85℃ for industrial: 250 mA; (10)Maximum current into VDD pin, -40℃ ≤ TA ≤ +125℃ for extended: 70 mA; (11)Clamp current, IK (VPIN < 0 or VPIN > VDD): 20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA.

Features

PIC16LF1904-I/MV features: (1)C Compiler Optimized Architecture; (2)Only 49 Instructions; (3)Up to 14 Kbytes Self-Write/Read Flash Program Memory Addressing; (4)Up to 256 Bytes Data Memory Addressing; (5)Operating Speed: DC - 20 MHz clock input @ 3.6V; DC - 16 MHz clock input @ 1.8V; DC - 200 ns instruction cycle; (6)Interrupt Capability with Automatic Context Saving; (7)16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset; (8)Direct, Indirect and Relative Addressing modes: Two full 16-bit File Select Registers (FSRs); FSRs can read program and data memory.
