Product Summary

The PIC16LF819T-I/ML is an 18/20-Pin enhanced flash microcontroller with nanoWatt technology. The PIC16LF819T-I/ML belongs to the Mid-Range family of the PICmicro devices.

Parametrics

PIC16LF819T-I/ML absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD and MCLR): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (5)Voltage on MCLR with respect to VSS: -0.3 to +14V; (6)Total power dissipation: 1W; (7)Maximum current out of VSS pin: 200 mA; (8)Maximum current into VDD pin: 200 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA: 100 mA; (14)Maximum current sourced by PORTA: 100 mA; (15)Maximum current sunk by PORTB: 100 mA; (16)Maximum current sourced by PORTB: 100 mA.

Features

PIC16LF819T-I/ML features: (1)Power-Managed modes: Primary Run: XT, RC oscillator, 87μA, 1 MHz, 2V; INTRC: 7μA, 31.25 kHz, 2V; Sleep: 0.2μA, 2V; (2)Timer1 oscillator: 1.8μA, 32 kHz, 2V; (3)Watchdog Timer: 0.7μA, 2V; (4)Wide operating voltage range: Industrial: 2.0V to 5.5V; (5)Three Crystal modes: LP, XT, HS: up to 20 MHz; (6)Two External RC modes; (7)One External Clock mode: ECIO: up to 20 MHz; (8)Internal oscillator block: 8 user selectable frequencies: 31 kHz, 125 kHz, 250 kHz, 500 kHz, 1 MHz, 2 MHz, 4 MHz, 8 MHz; (9)16 I/O pins with individual direction control; (10)High sink/source current: 25 mA; (11)Timer0: 8-bit timer/counter with 8-bit prescaler; (12)Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock; (13)Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler; (14)Capture, Compare, PWM (CCP) module: Capture is 16-bit, max. resolution is 12.5 ns; Compare is 16-bit, max. resolution is 200 ns; PWM max. resolution is 10-bit; (15)10-bit, 5-channel Analog-to-Digital converter; (16)Synchronous Serial Port (SSP) with SPI (Master/Slave) and I2C (Slave).

Diagrams

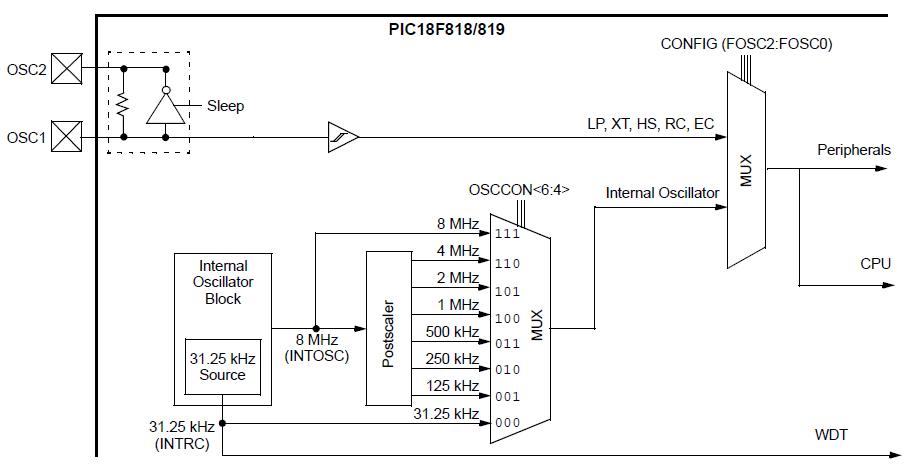

PIC16LF819T-I/ML block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16LF819T-I/ML
PIC16LF819T-I/ML

Microchip Technology

8-bit Microcontrollers (MCU) 3.5KB 256 RAM 16 I/O

Data Sheet
