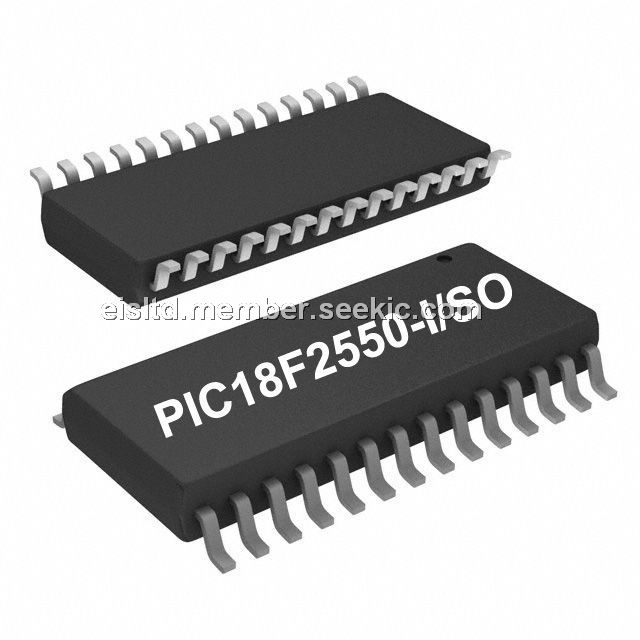

PIC18F2550-I/SO

High Performance, Enhanced Flash, USB Microcontroller, SOP-28, -0.3V to +7.5V, Low Speed, USB V2.0 Compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.60~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.60~3.00

PartNumber:: PIC18F2550-I/SO

Brand:: Microchip Technology - Microchip | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-07

From Other Seller

Part Number:PIC18F2550-I/SO
US $2.60 - 3.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC18F2550-I/SO is a High Performance, Enhanced Flash, USB Microcontroller with nanoWatt Technology. The PIC18F2550-I/SO offers the advantages of all PIC18 microcontrollers – namely, high computational performance at an economical price – with the addition of high endurance, Enhanced Flash program memory. In addition to these features, the PIC18F2550-I/SO introduces design enhancements that make the controller a logical choice for many high-performance, power sensitive applications.

Parametrics

PIC18F2550-I/SO absolute maximum ratings: (1)Ambient temperature under bias: -40 to +85℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Total power dissipation: 1.0W; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Maximum output current sunk by any I/O: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all ports: 200mA; (14)Maximum current sourced by all ports: 200 mA.

Features

PIC18F2550-I/SO features: (1)USB V2.0 Compliant; (2)Low Speed (1.5 Mb/s) and Full Speed (12 Mb/s); (3)Supports Control, Interrupt, Isochronous and Bulk Transfers; (4)Supports up to 32 Endpoints (16 bidirectional); (5)1-Kbyte Dual Access RAM for USB; (6)On-Chip USB Transceiver with On-Chip Voltage Regulator; (7)Interface for Off-Chip USB Transceiver; (8)Streaming Parallel Port (SPP) for USB streaming transfers (40/44-pin devices only).
