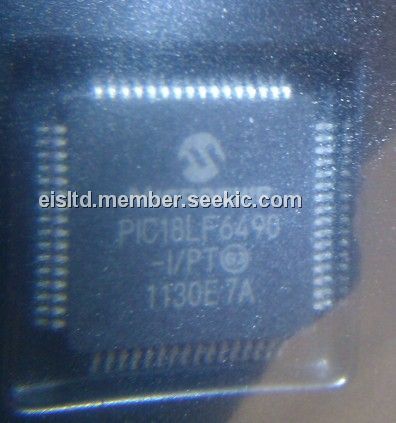

PIC18LF6490-I/PT

PIC18LF6490-I/PT, Flash Microcontroller, QFP-64, 7.5V, 300mA, Microchip Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~3.00

PartNumber:: PIC18LF6490-I/PT

Brand:: Microchip Technology - Microchip | Pack: QFP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-19

From Other Seller

Part Number:PIC18LF6490-I/PT
US $2.00 - 3.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC18LF6490-I/PT is a flash microcontroller with LCD driver and nanoWatt technology.

Parametrics

PIC18LF6490-I/PT absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD and MCLR): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Total power dissipation: 1.0W; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all ports: 200 mA; (14)Maximum current sourced by all ports: 200 mA.

Features

PIC18LF6490-I/PT features: (1)Direct Driving of LCD Panel; (2)Up to 48 Segments: Software Selectable; (3)Programmable LCD Timing module: Multiple LCD timing sources available; Up to 4 commons: Static, 1/2, 1/3 or 1/4 multiplex; Static, 1/2 or 1/3 bias configuration; (4)Can drive LCD Panel while in Sleep mode.
