Product Summary
The ADM3307EARUZ-REEL is a Serial Port Transceiver. It is designed to fully meet the EIA-232 standard while operating with a single 2.7 V to 3.6 V power supply. The ADM3307EARUZ-REEL features an on-board charge pump dc-to-dc converter, eliminating the need for dual power supplies. It contains ESD protection up to ±15 kV on all I/O lines (CMOS, RS-232, EN, and SD). The applications of the ADM3307EARUZ-REEL are Mobile Phone Handsets/Data Cables, Laptop and Notebook Computers, Printers, Peripherals, Modems, PDAs/Hand-Held Devices/Palmtop Computers.
Parametrics
ADM3307EARUZ-REEL absolute maximum ratings: (1)VCC:–0.3 V to +4 V; (2)V+:(VCC – 0.3 V) to +9 V; (3)V–:+0.3 V to –9 V; (4)Input Voltages: TIN:–0.3 V to +6 V, RIN:±30 V; (5)Output Voltages: TOUT:±15 V, ROUT:–0.3 V to (VCC + 0.3 V); (6)Short Circuit Duration: TOUT:Continuous; (7)Operating Temperature Range:–40℃ to +85℃; (8)Storage Temperature Range:–65℃ to +150℃; (9)Lead Temperature (Soldering, 10 sec):300℃; (10)ESD Rating (IEC 1000-4-2 Air) (RS-232 I/Os):±15 kV; (11)ESD Rating (IEC 1000-4-2 Contact) (RS-232 I/Os):±8 kV.
Features
ADM3307EARUZ-REEL features: (1)Green Idle Power-Saving Mode; (2)Single 2.7 V to 3.6 V Power Supply; (3)Operates with 3 V Logic; (4)0.1 μF to 1 μF Charge Pump Capacitors; (5)Low EMI; (6)Low Power Shutdown: 20 nA; (7)Full RS-232 Compliance; (8)460 kbits/s Data Rate; (9)1 Receiver Active in Shutdown; (10)ESD >15 kV IEC 1000-4-2 on CMOS and RS-232 I/Os.

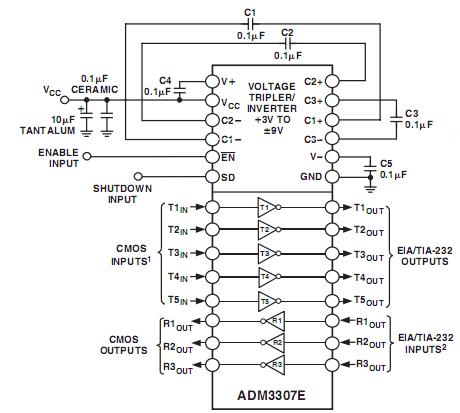

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM3307EARUZ-REEL |
|
IC TXRX RS-232 5:3 2.7V 28TSSOP |
Data Sheet |
|
|
||||||
|
ADM3307EARUZ-REEL7 |
|
IC TXRX RS-232 5:3 2.7V 28TSSOP |
Data Sheet |
|
|
||||||
