Product Summary
The SAB82525 is a High-Level Serial Communication Controller compatible to the SAB82520 HSCC with extended features and functionality (HSCX). The SAB82525 has been designed to implement high-speed communication links using HDLC protocols and to reduce the hardware and software overhead needed for serial synchronous communications. Due to its 8-bit demultiplexed adaptive bus interface it fits perfectly into every Siemens/Intel or Motorola 8- or 16-bit microcontroller or microprocessor system.
Parametrics
SAF82525 absolute maximum ratings: (1)Ambient temperature under bias, TA: -40 to 85℃; (2)Storage temperature, Tstg: -65 to +125℃; (3)Voltage on any pin with respect to ground, VS: -0.4 to VDD +0.4; (4)Maximum voltage on any pin, Vmax: 6V.
Features
SAF82525 features: (1)Two independent full-duplex HDLC channels (SAB 82526: one channel), On chip clock generation or external clock source; On chip DPLL for clock recovery for each channel; Two independent baudrate generators (SAB 82526: one baudrate generator); Independent time-slot assignment for each channel with programmable time-slot length (1-256 bit); (2)Different modes of data encoding; (3)Modem control lines (RTS, CTS, CD); (4)Support of bus configuration by collision resolution; (5)Programmable bit inversion; (6)Transparent receive/transmit of data bytes without HDLC framing; (7)Continuous transmission of 1 to 32 bytes possible; (8)Data rate up to 4 Mbit/s.

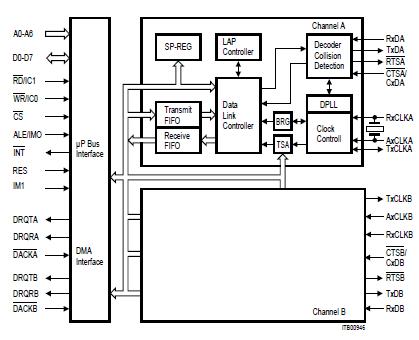

Diagrams
