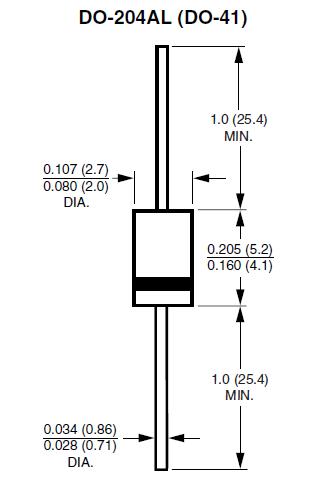

SBYV26C-E3/54, Glass Passivated Ultrafast Rectifier, DO-204AL, 600V, 1A, Vishay Siliconix

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.50

PartNumber:: SBYV26C-E3/54

Brand:: Vishay Siliconix - Vishay | Pack: DO | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-30

From Other Seller

Part Number:SBYV26C-E3/54
US $0.10 - 1.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SBYV26C-E3/54 is a Glass Passivated Ultrafast Rectifier. The applications of the SBYV26C-E3/54 include high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication.

Parametrics

SBYV26C-E3/54 absolute maixmum ratings: (1)Maximum repetitive peak reverse voltage, VRRM: 600 V; (2)Maximum RMS voltage, VRMS: 420 V; (3)Maximum DC blocking voltage, VDC: 600 V; (4)Maximum average forward rectified current 0.375" (9.5 mm) lead length at TL = 85℃, IF(AV): 1.0 A; (5)Peak forward surge current 10 ms single half sine-wave superimposed on rated load, IFSM: 30 A; (6)Non repetitive peak reverse energy, ERSM: 5.0 mJ; (7)Operating junction and storage temperature range, TJ, TSTG: -65 to + 175℃.

Features

SBYV26C-E3/54 features: (1)Cavity-free glass-passivated junction; (2)Ideal for printed circuit boards; (3)Ultrafast reverse recovery time; (4)Low forward voltage drop; (5)Low leakage current; (6)Low switching losses, high efficiency; (7)High forward surge capability; (8)Meets environmental standard MIL-S-19500; (9)Solder dip 26℃, 40 s; (10)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
