SI2434-C-FT

SI2434-C-FT, V.34 ISOMODEM, 24-TSSOP, 4.1V, 10mA, Silicon Laboratories

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~1.60

PartNumber:: SI2434-C-FT

Brand:: Silicon Laboratories - SLAB | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-07

From Other Seller

Part Number:SI2434-C-FT
US $0.20 - 1.60
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

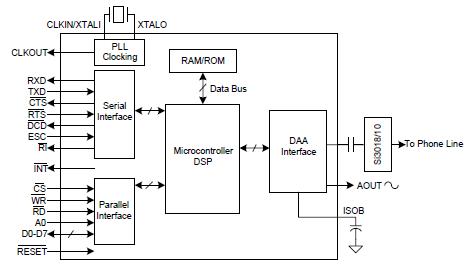

The SI2434-C-FT is a V.34 ISOMODEM. The ISOmodem family of products is a complete modem ranging in speed from 56,000 bps to 2400 bps. The SI2434-C-FT utilizes Silicon Laboratories patented Direct Access Arrangement (DAA) technology to provide a programmable telephone line interface with an unparalleled level of integration. The compact solutions eliminate the need for a separate DSP, modem controller, codec, transformer, relay, opto-isolators, clocking crystal, and 2-4 wire hybrid. Available with a system-side packaging option of either a 16-pin SOIC or a 24-pin TSSOP, these devices are ideal for embedded modem applications due to their flexibility, small footprint, and minimal external component count. The applications of the SI2434-C-FT include Set-top boxes, Point-of-sale terminals, Text/video telephones, Digital video recorder, Digital televisions, Remote monitoring.

Parametrics

SI2434-C-FT absolute maximum ratings: (1)DC Supply Voltage, VD: 4.1 V; (2)Input Current, Si2434Digital Input Pins, IIN: ±10 mA; (3)Digital Input Voltage, VIND: -0.3 to 5.3 V; (4)CLKIN/XTALI Input Voltage, VXIND: -0.3 to (VD + 0.3) V; (5)Operating Temperature Range, TA: -10 to 100℃; (6)Storage Temperature Range, TSTG: -40 to 150℃.

Features

SI2434-C-FT features: (1)Data modem formats, ITU-T, Bell; 300 bps up to 56 kbps; V.21,V.22, V.29 Fast Connect; V.42, V.42bis, MNP2-5; Automatic rate negotiation; (2)Type I and II caller ID decode; (3)No external ROM or RAM required; (4)UART or parallel interface; (5)AT command set support; (6)SMS / MMS support; (7)Integrated DAA, Over 6000 V Capacitive isolation; Parallel phone detect; Globally-compliant line interface; Overcurrent detection; (8)27 MHz clock input; (9)3.3 V power; (10)Firmware upgradeable; (11)EEPROM interface; (12)Lead-free, RoHS Compliant Packages.
