Product Summary

The TL16C752BPT is a dual-universal asynchronous receiver/transmitter (UART) with 64-byte FIFOs, automatic hardware/software flow control, and data rates up to 3 Mbps. The TL16C752BPT offers enhanced features. The TL16C752BPT has a transmission control register (TCR) that stores receiver FIFO threshold levels to start/stop transmission during hardware and software flow control. With the FIFO RDY register, the software gets the status of TXRDY/RXRDY for all four ports in one access. On-chip status registers provide the user with error indications, operational status, and modem interface control. System interrupts may be tailored to meet user requirements. An internal loopback capability allows onboard diagnostics.

Parametrics

TL16C752BPT absolute maximum ratings: (1)Supply voltage ,VCC: 3.6V; (2)Input voltage, VI:VCC V; (3)High-level input voltage, VIH: VCC V; (4)Low-level input voltage, VIL: 0.3VCC V; (5)Output voltage, VO: vcc V; (6)Input capacitance, CI: 18pF; (7)Operating free-air temperature, TA: 110℃.

Features

TL16C752BPT features: (1)False start bit detection; (2)Complete status reporting capabilities in both normal and sleep mode; (3)Line break generation and detection; (4)Internal test and loopback capabilities; (5)Modem control functions.

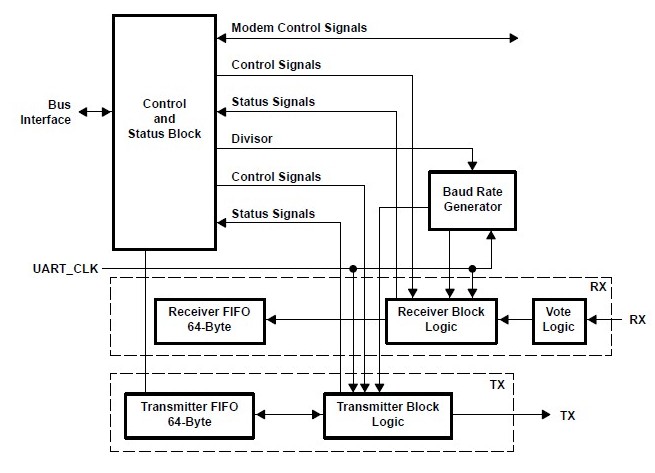

Diagrams

 TL16C752BPT pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TL16C752BPT
TL16C752BPT

Texas Instruments

UART Interface IC Dual UART With 64-Byte FIFO

Data Sheet

0-1: $3.90
1-25: $3.63
25-100: $3.28
100-250: $3.01
TL16C752BPTG4
TL16C752BPTG4

Texas Instruments

UART Interface IC Dual UART With 64-Byte FIFO

Data Sheet

0-147: $3.05
147-250: $2.39
250-500: $2.36
500-1000: $2.33
TL16C752BPTR
TL16C752BPTR

Texas Instruments

UART Interface IC Dual UART With 64-Byte FIFO

Data Sheet

0-1: $3.33
1-25: $2.44
25-100: $2.06
100-250: $1.96
TL16C752BPTRG4
TL16C752BPTRG4

Texas Instruments

UART Interface IC Dual UART With 64-Byte FIFO

Data Sheet

0-775: $1.92
775-1000: $1.90
1000-2000: $1.86
