TLE4209A

DC motor driver, -0.3 to 45V, 1A, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: TLE4209A

Brand:: eupec GmbH - infineon | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:TLE4209A
US $0.15 - 2.40
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

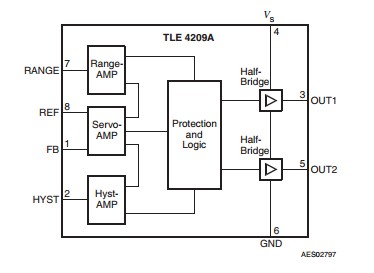

The TLE4209A is a DC motor driver for servo driver applications. The part is built using Infineons bipolar high voltage power technology DOPL. The device is available in a PG-DIP-8-4 package. The servo-loop-parameter pos.- and neg. Hysteresis, pos.- and neg. deadband and angle-amplification are programmable with external resitors. An internal window-comparator controls the input line. In the case of a fault condition, like short circuit to GND, short circuit to supply-voltage, and broken wire, the TLE4209A stops the motor immediately (brake condition).

Parametrics

TLE4209A absolute maximum ratings: (1)supply voltage: -0.3 to 45V; (2)logic input voltage: -0.3 to 20V; (3)output current: 1A; (4)input current: -2 to 2mA; (5)junction temperature: -40 to 150℃; (6)storage temperature: -50 to 150℃; (7)junction temperature: 100K/W.

Features

TLE4209A features: (1)Optimized for headlight beam control applications; (2)Delivers up to 0.8A; (3)Low saturation voltage; typ. 1.2V total @ 25℃; 0.4 A; (4)Output protected against short circuit; (5)Overtemperature protection with hysteresis; (6)Over- and undervoltage lockout; (7)No crossover current; (8)Internal clamp diodes; (9)Green Product (RoHS compliant); (10)AEC Qualified.
