TLE4268GS

fixed voltage regulator, -0.3 to 7V, -100 to 50mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: TLE4268GS

Brand:: eupec GmbH - infineon | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:TLE4268GS
US $0.15 - 2.40
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

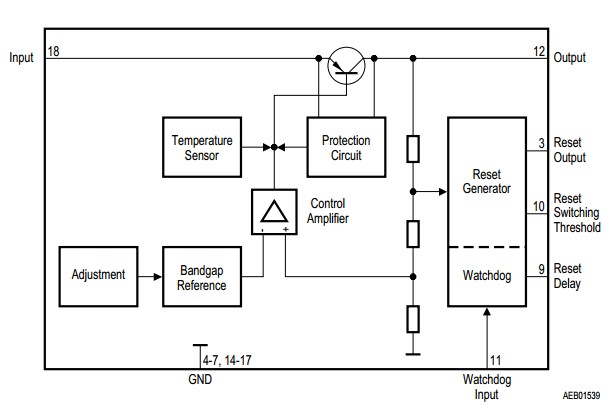

The TLE4268GS is a 5V low-drop fixed voltage regulator. The maximum input voltage is 45 V. It can deliver an output current of at least 180 mA. The IC is short-circuit proof and features temperature protection that disables the circuit in the event of impermissibly high temperatures. The wiring of the reset switching threshold input enables the value of VRT to be reduced. The reset delay time can be adjusted using an external capacitor. The integrated watchdog monitors the connected active controller.

Parametrics

TLE4268GS absolute maximum ratings: (1)input voltage: -30 to 45V; (2)input current: internally limited; (3)reset output voltage: -0.3 to 7V; (4)watchdog input: -0.3 to 7V; (5)reset threshold: -0.3 to 7V; (6)ground current: -100 to 50mA; (7)junction temperature: 150℃; (8)storage temperature: -50 to 150℃.

Features

TLE4268GS features: (1)Output voltage tolerance≤±2 %; (2)Very low current consumption; (3)Low-drop voltage; (4)Watchdog; (5)Settable reset threshold; (6)Overtemperature protection; (7)Reverse polarity protection; (8)Short-circuit proof; (9)Suitable for use in automotive electronics; (10)Wide temperature range.
