Product Summary
The Altera enhanced configuration EPF10K10LC84-4 is a single-device, high-speed, advanced configuration solution for very high-density FPGAs. The core of an enhanced configuration EPF10K10LC84-4 is divided into two major blocks: a configuration controller and a flash memory. The flash memory is used to store configuration data for systems made up of one or more Altera FPGAs. Unused portions of the flash memory can be used to store processor code or data that can be accessed via the external flash interface after FPGA configuration is complete. Table 1–1 summarizes the features of Altera configuration EPF10K10LC84-4 and the amount of configuration space they hold.
Parametrics
EPF10K10LC84-4 absolute maximum ratings: (1)VCC Supply voltage With respect to ground: -0.2 to 4.6 V; (2)VI DC input voltage With respect to ground: -0.5 to 3.6 V; (3)IMAX DC VCC or ground current:100 mA; (4)IOUT DC output current, per pin: -25 to 25 mA; (5)PD Power dissipation: 360 mW; (6)TSTG Storage temperature No bias: -65 to 150 ℃; (7)TAMB Ambient temperature Under bias: -65 to 135 ℃; (8)TJ Junction temperature Under bias: 135 ℃.
Features
EPF10K10LC84-4 features: (1)Contains 4-, 8-, and 16-Mbit flash memories for configuration data storage; (2)Standard flash die and a controller die combined into single stacked chip package; (3)Supply voltage of 3.3 V (core and I/O); (4)Hardware compliant with IEEE Std. 1532 in-system programmability (ISP) specification; (5)Supports ISP via Jam Standard Test and Programming Language (STAPL); (6)Supports JTAG boundary scan; (7)nINIT_CONF pin allows private JTAG instruction to start FPGA configuration; (8)Internal pull-up resistor on nINIT_CONF always enabled; (9)User programmable weak internal pull-up resistors on nCS and OE pins; (10)Internal weak pull-up resistors on external flash interface address and control lines, bus hold on data lines; (11)Standby mode with reduced power consumption.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

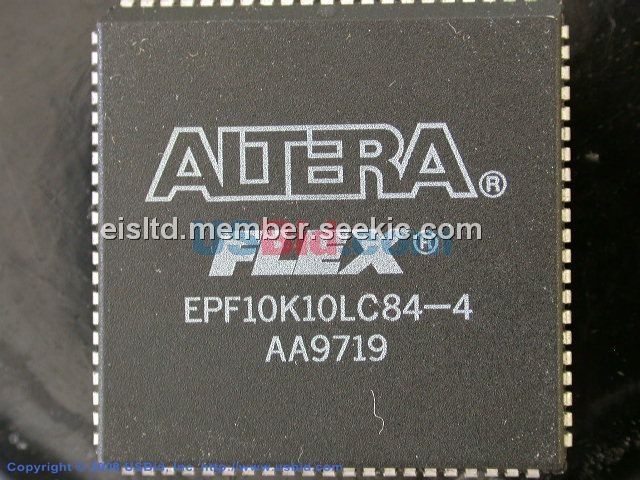

 EPF10K10LC84-4 |
|
IC FLEX 10K FPGA 84-PLCC |
Data Sheet |
|
|
||||||
|
EPF10K10LC84-4N |
|
IC FLEX 10K FPGA 84-PLCC |
Data Sheet |
|
|
||||||
