Product Summary

The TSOP34838 is a miniaturized receiver for infrared remote control systems. A PIN diode and a preamplifier are assembled on a lead frame, the epoxy package acts as an IR filter. The demodulated output signal can be directly decoded by a microprocessor. The TSOP34838 is compatible with all common IR remote control data formats. The TSOP34838 is optimized to suppress almost all spurious pulses from energy saving fluorescent lamps but will also suppress some data signals. This component has not been qualified according to automotive specifications.

Parametrics

TSOP34838 absolute maximum ratings: (1)Supply voltage, VS: -0.3 to + 6.0 V; (2)Supply current, IS: 3 mA; (3)Output voltage, VO: -0.3 to (VS + 0.3) V; (4)Output current, IO: 5 mA; (5)Junction temperature, Tj: 100℃; (6)Storage temperature range, Tstg: -25 to + 85℃; (7)Operating temperature range, Tamb: -25 to + 85℃; (8)Power consumption Tamb ≤ 85℃, Ptot: 10 mW; (9)Soldering temperature t ≤ 10 s, 1 mm from case, Tsd: 260℃.

Features

TSOP34838 features: (1)Very low supply current; (2)Photo detector and preamplifier in one package; (3)Internal filter for PCM frequency; (4)Improved shielding against EMI; (5)Supply voltage: 2.5 V to 5.5 V; (6)Improved immunity against ambient light; (7)Insensitive to supply voltage ripple and noise; (8)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

Diagrams

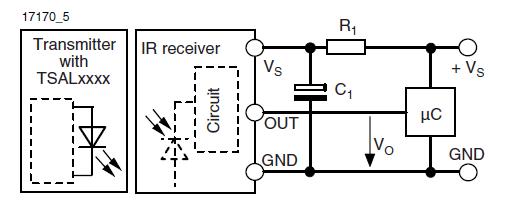

TSOP34838 circuit diagram
