Product Summary

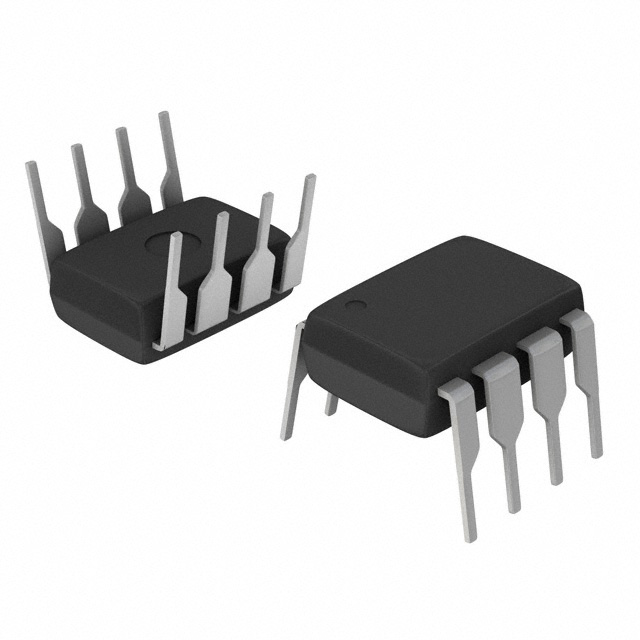

The X5045P is a CPU Supervisor with 4K SPI EEPROM. It combines four popular functions, Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability.
Parametrics
X5045P absolute maximum ratings: (1)Temperature under bias: -65℃ to +135℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS: -1.0V to +7V; (4)D.C. output current: 5mA; (5)Lead temperature (soldering, 10 seconds): 300℃.
Features
X5045P features: (1)Low VCC Detection and Reset Assertion; (2)Selectable Time Out Watchdog Timer; (3)Long Battery Life with Low Power Consumption; (4)4Kbits of EEPROM-1M Write Cycle Endurance; (5)Save Critical Data with Block Lock Memory: Protect 1/4, 1/2, all or none of EEPROM array; (6)Built-in Inadvertent Write Protection; (7)SPI Interface - 3.3MHz Clock Rate; (8)Minimize Programming Time; (9)Available Package: 8 Ld PDIP; (10)Pb-Free Plus Anneal Available (RoHS Compliant); (11)Applications: Communications Equipment, Industrial Systems, Computer Systems, and Battery Powered Equipment.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 X5045P |
|
IC CPU SUPRV 4K EE RST HI 8DIP |
Data Sheet |
Negotiable |
|
||||
|
X5045P-2.7 |
|
IC CPU SUPRV 4K EE RST HI 8DIP |
Data Sheet |
Negotiable |
|
||||
|
X5045P-2.7A |
|
IC SUPERVISOR CPU 4K EE 8-DIP |
Data Sheet |
Negotiable |
|
||||
|
X5045P-4.5A |
|
IC SUPERVISOR CPU 4K EE 8-DIP |
Data Sheet |
Negotiable |
|
||||
|
X5045PI |
|
IC CPU SUPRV 4K EE RST HI 8DIP |
Data Sheet |
Negotiable |
|
||||
|
X5045PI-2.7 |
|
IC CPU SUPRV 4K EE RST HI 8DIP |
Data Sheet |
Negotiable |
|
||||
|
X5045PI-4.5A |
|
IC CPU SUPRV 4K EE RST HI 8DIP |
Data Sheet |
Negotiable |
|
||||
|
X5045PI-2.7A |
|
IC CPU SUPRV 4K EE RST HI 8DIP |
Data Sheet |
Negotiable |
|
||||
