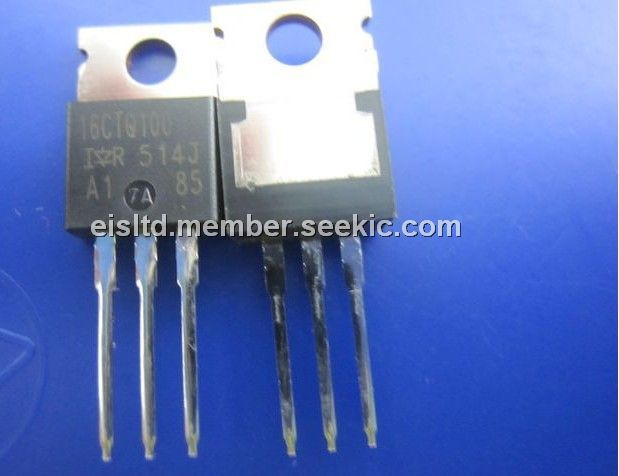

The 16CTQ100PBF is a Schottky Rectifier. The 16CTQ100PBF center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175℃ junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
Parametrics
16CTQ100PBF absolute maximum ratings: (1)Max. Average Forward current (Per Leg), IF(AV): 8 A; (per device), IF(AV): 16A ; (2)Max. Peak One Cycle Non-Repetitive Surge Current (Per Leg), Surge Current (Per Leg), IFSM: 850A; 10μs Sine or 6ms Rect. pulse, IFSM: 275A; (3)Non-Repetit. Avalanche Energy (Per Leg), EAS: 7.5 mJ; (4)Repetitive Avalanche Current, IAR: 0.5A.
Features
16CTQ100PBF features: (1)175℃ TJ operation; (2)Center tap configuration; (3)Low forward voltage drop; (4)High purity, high temperature epoxy encapsulation for; (5)enhanced mechanical strength and moisture resistance; (6)High frequency operation; (7)Guard ring for enhanced ruggedness and long term; (8)reliability; (9)Lead-Free ("PbF" suffix).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 16CTQ100PBF |
|
DIODE SCHOTTKY 100V 8A TO220AB |
Data Sheet |
|
|
||||||||||||||||||||||
