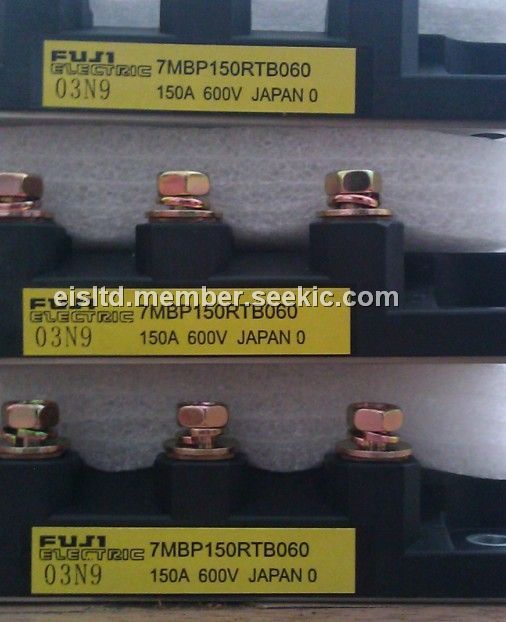

The 7MBP150RTB060 is an intelligent power module.
Parametrics
7MBP150RTB060 absolute maximum ratings: (1)Bus voltage (between terminal P and N), DC, VDC: 0 to 450V; Surge, VDC(surge): 0 to 500V; Shortoperating, VSC: 200 to 400V ; (2)Collector-Emitter voltage, VCES: 0 to 600V; (3)Collector current, DC, IC: 150A; (4)Collector current, One transistor, PC: 431W; (5)Input voltage of power supply for Pre-Driver, VCC: -0.5 to 20V; (6)Input signal voltage, Vin: -0.5 to Vcc+0.5V; (7)Input signal current, Iin: 3mA; (8)Alarm signal voltage, VALM: -0.5 to VCC+0.5V; (9)Alarm signal current, IALM: 20mA; (10)Junction temperature, Tj: 150℃; (11)Operating case temperature, Top: -20 to 100℃; (12)Storage temperature, Tstg: -40 to 125℃; (13)Isolating voltage (Case-Terminal), Viso: AC2.5 kV; (14)Screw torque Mounting (M5): 3.5N·m ; Terminal (M5): 3.5N·m.
Features
7MBP150RTB060 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)High performance and high reliability IGBT with overheating protection; (4)Higher reliability because of a big decrease in number of parts in built-in control circuit.

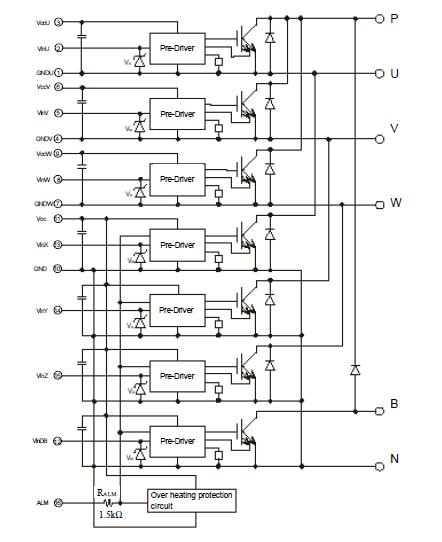

Diagrams
