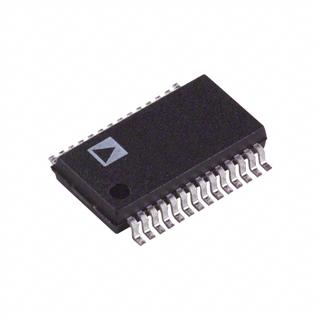

AD1895AYRSZRL

Product Summary

The AD1895AYRSZRL is a 24-bit, high performance, single-chip, second generation asynchronous sample rate converter. Based upon Analog Devices’ experience with its first asynchronous sample rate converter, the AD1895AYRSZRL offers improved performance and additional features. This improved performance includes a THD + N range of –115 dB to –122 dB depending on sample rate and input frequency, 128 dB (A-Weighted) dynamic range, 192 kHz sampling frequencies for both input and output sample rates, improved jitter rejection, and 1:8 upsampling and 7.75:1 downsampling ratios. Additional features include more serial formats, a bypass mode, and better interfacing to digital signal processors. The applications of the AD1895AYRSZRL include Home Theater Systems, Automotive Audio Systems, DVD, DVD-R, CD-R, Set-Top Boxes, Digital Audio Effects Processors.

Parametrics

AD1895AYRSZRL absolute maximum ratings: (1)Supply Voltages, VDD_CORE: 3.3 V; VDD_IO: 5.0 V or 3.3 V; (2)Ambient Temperature: 25℃; (3)Input Clock: 30.0 MHz; (4)Input Signal: 1.000 kHz, 0 dBFS; (5)Measurement Bandwidth: 20 to fS_OUT/2 Hz; (6)Word Width: 24 Bits; (7)Load Capacitance: 50 pF; (8)Input Voltage High: 2.4 V; (9)Input Voltage Low: 0.8 V.

Features

AD1895AYRSZRL features: (1)Automatically Senses Sample Frequencies; (2)No Programming Required; (3)Attenuates Sample Clock Jitter; (4)3.3 V to 5 V Input and 3.3 V Core Supply Voltages; (5)Accepts 16-/18-/20-/24-Bit Data; (6)Up to 192 kHz Sample Rate; (7)Input/Output Sample Ratios from 7.75:1 to 1:8; (8)Bypass Mode; (9)Multiple AD1895 TDM Daisy-Chain Mode; (10)128 dB Signal-to-Noise and Dynamic Range (A-Weighted, 20 Hz to 20 kHz BW); (11)Up to –122 dB THD + N; (12)Linear Phase FIR Filter; (13)Hardware Controllable Soft Mute; (14)Supports 256 × fS, 512 × fS, or 768 × fS Master Mode Clock; (15)Flexible 3-Wire Serial Data Port with Left-Justified, I2S, Right-Justified (16-, 18-, 20-, 24-Bit), and TDM Serial Port Modes; (16)Master/Slave Input and Output Modes; (17)28-Lead SSOP Plastic Package.

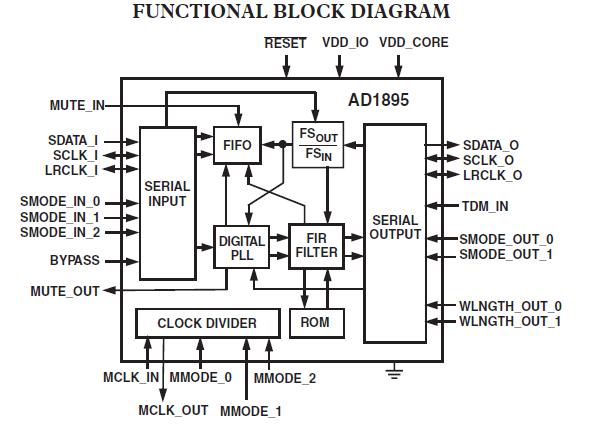

Diagrams
