Product Summary
The AD22050RZ is a single-supply difference amplifier for amplifying and low-pass filtering small differential voltages (typically 100 mV FS at a gain of 40) from sources having a large common-mode voltage. The applications of the AD22050RZ are Current Sensing, Motor Control, Interface for Pressure Transducers, Position Indicators, Strain Gages, and Other Low Level Signal Sources.
Parametrics
AD22050RZ absolute maximum raitngs: (1)Supply Voltage: +3.0 V to +36 V; (2)Peak Input Voltage (40 ms): +60 V; (3)VOFS (Pin 7 to Pin 2): +20 V; (4)Reversed Supply Voltage Protection: -34 V; (5)Operating Temperature: -40 to +125℃; (6)Storage Temperature: -65 to +150℃; (7)Output Short Circuit Duration: Indefinite; (8)Lead Temperature Range (Soldering 60 sec): +300℃.
Features
AD22050RZ features: (1)Gain of 320. Alterable from ×1 to ×160; (2)Input CMR from Below Ground to 63 (VS - 1 V); (3)Output Span 20 mV to (VS - 0.2) V; (4)1-, 2-, 3-Pole Low-Pass Filtering Available; (5)Accurate Midscale Offset Capability; (6)Differential Input Resistance 400 kV; (7)Drives 1 kV Load to +4 V Using VS = +5 V; (8)Supply Voltage: +3.0 V to +36 V; (9)Transient Spike Protection and RFI Filters Included; (10)Peak Input Voltage (40 ms): 60 V; (11)Reversed Supply Protection: -34 V; (12)Operating Temperature Range: -40 to +125℃.

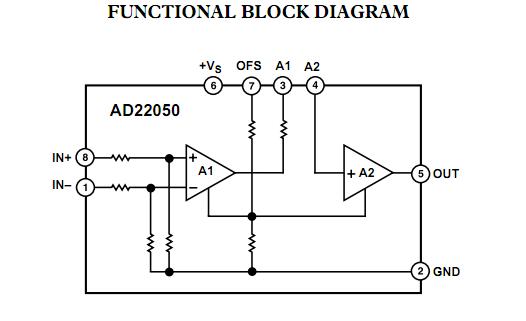

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD22050RZ |
|
IC AMP DIFF SINGLE SUPPLY 8-SOIC |
Data Sheet |
Negotiable |
|
||||
|
AD22050RZ-REEL |
|
IC AMP DIFF SINGLE SUPPLY 8SOIC |
Data Sheet |
Negotiable |
|
||||
|
AD22050RZ-REEL7 |
|
IC AMP DIFF SINGLE SUPPLY 8SOIC |
Data Sheet |
Negotiable |
|
||||
