Product Summary

The AD22100KRZ is a monolithic temperature sensor with on-chip signal conditioning. It can be operated over the temperature range -50℃ to +150℃, making it ideal for use in numerous HVAC, instrumentation and automotive applications. The signal conditioning eliminates the need for any trimming, buffering or linearization circuitry, greatly simplifying the system design and reducing the overall system cost. The applications of the AD22100KRZ include HVAC Systems, System Temperature Compensation, Board Level Temperature Sensing, Electronic Thermostats.

Parametrics

AD22100KRZ absolute maximum ratings: (1)Supply Voltage: +10 V; (2)Reversed Continuous Supply Voltage: -10 V; (3)Operating Temperature: -50℃ to +150℃; (4)Storage Temperature: -65℃ to +160℃; (5)Output Short Circuit to V+ or Ground: Indefinite; (6)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AD22100KRZ features: (1)200℃ Temperature Span; (2)Accuracy Better than ±2% of Full Scale; (3)Linearity Better than ±1% of Full Scale; (4)Temperature Coefficient of 22.5 mV/℃; (5)Output Proportional to Temperature × V+; (6)Single Supply Operation; (7)Reverse Voltage Protection; (8)Minimal Self Heating; (9)High Level, Low Impedance Output.

Diagrams

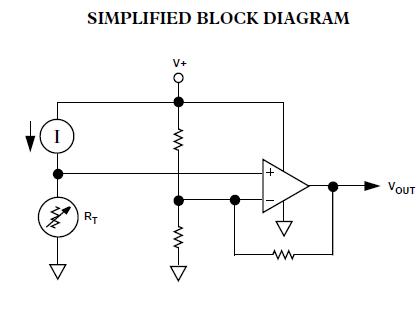

AD22100KRZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD22100KRZ
AD22100KRZ

IC TEMP SNSR VOUT SGNLCOND 8SOIC
Data Sheet
0-1: $2.57
1-10: $2.30
10-100: $1.88
100-250: $1.70
250-500: $1.52
500-1000: $1.29
1000-2500: $1.22
AD22100KRZ-REEL7
AD22100KRZ-REEL7

IC TEMP SNSR VOUT SGNLCOND 8SOIC
Data Sheet
0-1000: $1.29
