Product Summary
The AD22105ARZ is a solid state thermostatic switch. Requiring only one external programming resistor, the AD22105ARZ can be set to switch accurately at any temperature in the wide operating range of -40℃ to +150℃. Using a novel circuit architecture, the AD22105ARZ asserts an open collector output when the ambient temperature exceeds the user-programmed setpoint temperature. The AD22105ARZ has approximately 4℃ of hysteresis which prevents rapid thermal on/off cycling. The applications of the AD22105ARZ are Industrial Process Control, Thermal Control Systems, CPU Monitoring (i.e., Pentium), Computer Thermal Management Circuits, Fan Control and Handheld/Portable Electronic Equipment.
Parametrics
AD22105ARZ absolute maximum ratings: (1)Maximum Supply Voltage: +11 V; (2)Maximum Output Voltage: +11 V; (3)Maximum Output Current (Pin 2): 10 mA; (4)Operating Temperature Range: –50 to +150℃; (5)Dice Junction Temperature: +160℃; (6)Storage Temperature Range: –65 to +160℃; (7)Lead Temperature (Soldering, 10 sec): +300℃.
Features
AD22105ARZ features: (1)User-Programmable Temperature Setpoint; (2)2.0℃ Setpoint Accuracy; (3)4.0℃ Preset Hysteresis; (4)Wide Supply Range (+2.7 V dc to +7.0 V dc); (5)Wide Temperature Range (–40 to +150℃); (6)Low Power Dissipation (230 mW @ 3.3 V).

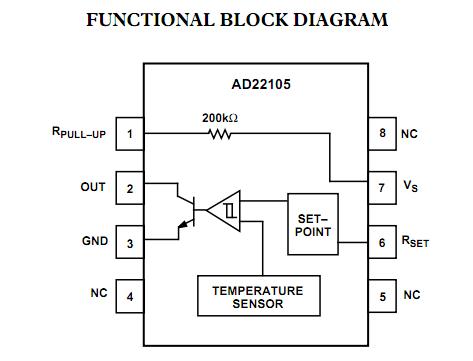

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD22105ARZ |
|
IC TEMP SENSOR/SWITCH LV 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD22105ARZ-REEL |
|
IC TEMP SENSOR/SWITCH LV 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD22105ARZ-REEL7 |
|
IC TEMP SENSOR/SWITCH LV 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
