Product Summary
The AD524AD is a precision monolithic instrumentation amplifier designed for data acquisition applications requiring high accuracy under worst-case operating conditions. An outstanding combination of high linearity, high common mode rejection, low offset voltage drift and low noise makes the device suitable for use in many data acquisition systems. The AD524AD has an output offset voltage drift of less than 25 mV/℃, input offset voltage drift of less than 0.5 mV/℃, CMR above 90 dB at unity gain (120 dB at G = 1000) and maximum nonlinearity of 0.003% at G = 1. In addition to the outstanding dc specifications, the AD524AD also has a 25 kHz gain bandwidth product (G = 1000). To make it suitable for high speed data acquisition systems the AD524AD has an output slew rate of 5 V/ms and settles in 15 ms to 0.01% for gains of 1 to 100.
Parametrics
AD524AD absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: 450 mW; (3)Input Voltage (Either Input Simultaneously) |VIN| + |VS|: <36 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range, (R): -65℃ to +125℃; (D, E): -65℃ to +150℃; (6)Operating Temperature Range: -25℃ to +85℃; (7)Lead Temperature (Soldering 60 secs): +300℃.
Features
AD524AD features: (1)Low Noise: 0.3 mV p-p 0.1 Hz to 10 Hz; (2)Low Nonlinearity: 0.003% (G = 1); (3)High CMRR: 120 dB (G = 1000); (4)Low Offset Voltage: 50 mV; (5)Low Offset Voltage Drift: 0.5 mV/8C; (6)Gain Bandwidth Product: 25 MHz; (7)Pin Programmable Gains of 1, 10, 100, 1000; (8)Input Protection, Power On–Power Off; (9)No External Components Required; (10)Internally Compensated; (11)MIL-STD-883B and Chips Available; (12)16-Lead Ceramic DIP and SOIC Packages and 20-Terminal Leadless Chip Carriers Available; (13)Available in Tape and Reel in Accordance with EIA-481A Standard; (14)Standard Military Drawing Also Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

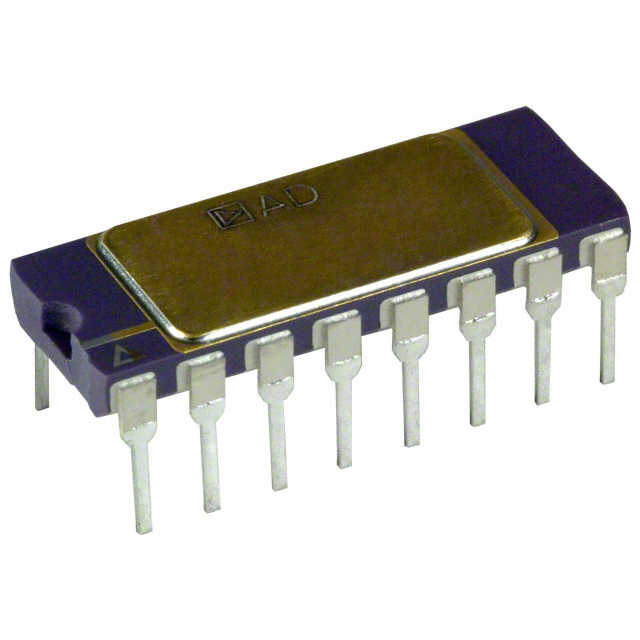

 AD524AD |
|
IC AMP INST 1MHZ PREC LN 16CDIP |
Data Sheet |
|
|
||||||||||||||||
|
AD524ADZ |
|
IC AMP INST 1MHZ PREC LN 16CDIP |
Data Sheet |
|
|
||||||||||||||||
