Product Summary
The AD567JD is a 12-Bit Microprocessor-Compatible DAC.
Parametrics
AD567JD absolute maximum ratings: (1)Vcc to POWER GROUND: 0 V dc to +18 V dc; (2)VEE to POWER GROUND: 0 V dc to -18 V dc; (3)Voltage on 0AC OUT: -3 V dc to +12 V dc; (4)Digital inputs to POWER GROUND: -1.0 V dc to 7.0 V dc; (5)Vdcc IN to REF GND: ±12 V dc; (6)BIP OFFSET to REF GNO: ±12 V dc; (7)10 V SPAN R to REF GND: ±12 V dc; (8)20 V SPAN R to REF GND: ±24 V dc; (9)Vref OUT short to POWER GROUND: Continuous; (10)Power dissipation (Pq): 1,000 mW; (11)Storage temperature range: -65℃ to +150℃; (12)Lead temperature (soldering, 10 seconds): +300℃; (13)Thermal resistance, junction to case (θjc): See MIL-M-38510, appendix C; (14)Thennal resistance, junction to ambient: 60℃/W.
Features
AD567JD features: (1)voltage, VCC: +15 V dc; (2)Supply voltage, VEE: -15.V dc; (3)Ambient operating temperature range (TA): -55℃ to +125℃; (4)Reference input resistance, TA = +25℃, RIN: 15 to 25 kΩ; (5)Output resistance, Excluding span resistor, TA = +25℃, ROUT: 6 to 10kΩ; (6)Reference output voltage, Unipolar mode, 1,1 mA external load, Vcc = +12V, vEE = -12V, VREF: 9.9 to 10.10V.

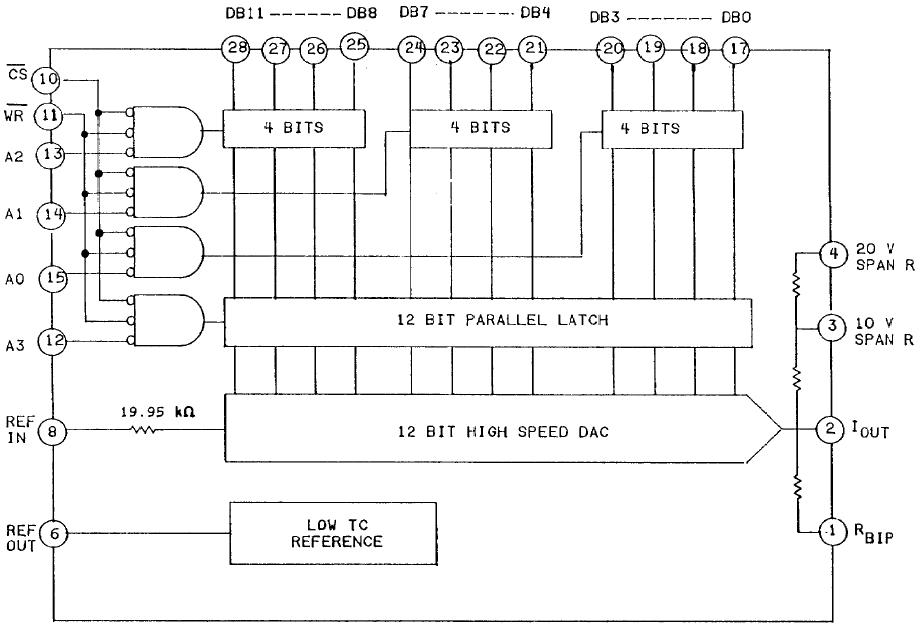

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD567JD |
|
IC DAC 12BIT MONO 28-CDIP |
Data Sheet |
|
|
||||||
 |
AD567JD/+ |
Analog Devices Inc. |
IC DAC 12BIT MONO 28-CDIP |
Data Sheet |
Negotiable |
|
||||||
