Product Summary
The TMS320DM642AZNZ6 is a video/imaging fixed-point digital signal processor.
Parametrics
TMS320DM642AZNZ6 absolute maximum ratings: (1)Vendor Texas: Instruments; (2)Category Integrated: Circuits (ICs) ; (3)Package / Case: 548-BBGA, FCBGA; (4)Packaging: Tray; (5)Type: Fixed Point; (6)Non-Volatile: Memory External; (7)On-Chip RAM: 160kB; (8)Interface: Host Interface, I²C, McASP, McBSP, PCI ; (9)Voltage I/O: 3.30V; (10)Voltage Core: 1.40V; (11)Clock Rate: 600MHz; (12)Operating Temperature: 0℃ ~ 90℃; (13)Lead Free Status: Lead Free; (14)RoHS Status: RoHS Compliant.
Features
TMS320DM642AZNZ6 features: (1)High-Performance Digital Media Processor; (2)Instruction Set Features; (3)L1/L2 Memory Architecture; (4)64-Bit External Memory Interface (EMIF); (5)Inter-Integrated Circuit (I2C Bus.); (6)Two Multichannel Buffered Serial Ports; (7)Sixteen General-Purpose I/O (GPIO) Pins; (8)0.13μm/6-Level Cu Metal Process (CMOS).

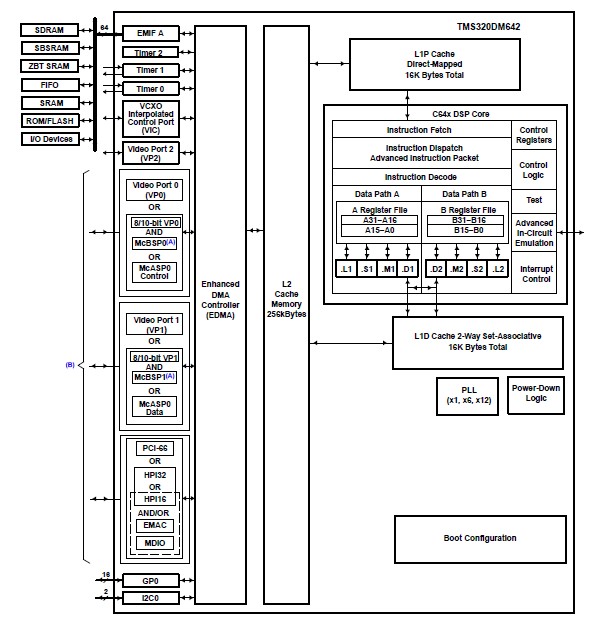

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TMS320DM642AZNZ6 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Video/Imaging Fixed-Point DSP |
Data Sheet |
|
|
|||||||||||
