AD604ARZ-RL

ultralow noise, very accurate, dual-channel, linear-in-dB variable gain amplifier, SOP-24, 2.2 W, 0 dB to 48 dB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.50~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.50~8.00

PartNumber:: AD604ARZ-RL

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-07

From Other Seller

Part Number:AD604ARZ-RL
US $6.50 - 8.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

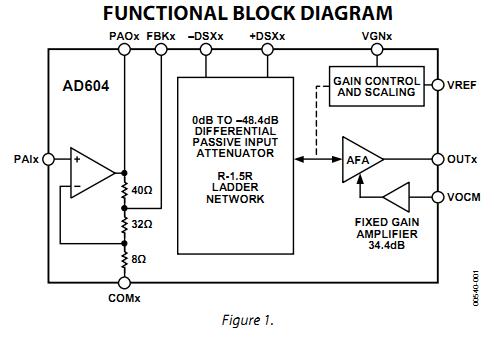

The AD604ARZ-RL is an ultralow noise, very accurate, dual-channel, linear-in-dB variable gain amplifier (VGA) optimized for time-based variable gain control in ultrasound applications; however, the AD604ARZ-RL supports any application requiring low noise, wide bandwidth, variable gain control. Each channel of the AD604ARZ-RL provides a 300 kΩ input resistance and unipolar gain control for ease of use. User-determined gain ranges, gain scaling (dB/V), and dc level shifting of output further optimize performance. The applications of the AD604ARZ-RL include Ultrasound and sonar time-gain controls, High performance AGC systems and Signal measurement.

Parametrics

AD604ARZ-RL absolute maximum ratings: (1)Supply Voltage ±VS, Pin 17 to Pin 20 (with Pin 16, Pin 22 = 0 V): ±6.5 V; (2)Input Voltages, Pin 1, Pin 2, Pin 11, Pin 12: VPOS/2 ± 2 V ; (3)continuous; (4)Pin 4, Pin 9: ±2 V; (5)Pin 5, Pin 8: VPOS, VNEG; (6)Pin 6, Pin 7, Pin 13, Pin 14, Pin 23, Pin 24: VPOS, 0 V; (7)Internal Power Dissipation: 2.2 W; (8)Operating Temperature Range: -40 to +85℃; (9)Storage Temperature Range: -65 to +150℃; (10)Lead Temperature, Soldering 60 sec: 300℃; (11)θJA: 105℃/W ; (12)θJC: 35℃/W.

Features

AD604ARZ-RL features: (1)Ultralow input noise at maximum gain 0.80 nV/Hz, 3.0 pA/Hz; (2)2 independent linear-in-dB channels; (3)Absolute gain range per channel programmable: 0 dB to 48 dB (preamplifier gain = 14 dB) through 6 dB to 54 dB (preamplifier gain = 20 dB); (4)±1.0 dB gain accuracy; (5)Bandwidth: 40 MHz (±3 dB); (6)Input resistance: 300 kΩ; (7)Variable gain scaling: 20 dB/V through 40 dB/V; (8)Stable gain with temperature and supply variations; (9)Single-ended unipolar gain control; (10)Power shutdown at lower end of gain control; (11)Drive ADCs directly.
