Product Summary

The AD7524JRZ is a low cost, 8-bit monolithic CMOS DAC designed for direct interface to most microprocessors. Load cycle of the the AD7524JRZ is similar to the write cycle of a random access memory. Using an advanced thin-film on CMOS fabrication process, the device provides accuracy to 1/8 LSB with a typical power dissipation of less than 10 milliwatts. The applications of the AD7524JRZ include microprocessor controlled gain circuits, microprocessor controlled attenuator circuits, microprocessor controlled function generation, precision agc circuits and bus structured instruments. Featuring operation from +5 V to +15 V, the AD7524JRZ interfaces directly to most microprocessor buses or output ports.

Parametrics

AD7524JRZ absolute maximum ratings: (1)VDD to GND: –0.3 V, +17 V; (2)VRFB to GND: ±25 V; (3)VREF to GND: ±25 V; (4)Digital Input Voltage to GND: –0.3 V to VDD +0.3 V; (5)OUT1, OUT2 to GND: –0.3 V to VDD +0.3 V; (6)Power Dissipation (Any Package) To +75℃: 450 mW; Derates above 75℃ by: 6 mW/℃; (7)Operating Temperature: –40 to +85℃; (8)Storage Temperature: –65 to +150℃; (9)Lead Temperature (Soldering, 10 secs): +300℃.

Features

AD7524JRZ features: (1)Microprocessor Compatible (6800, 8085, Z80, Etc.); (2)TTL/CMOS Compatible Inputs; (3)On-Chip Data Latches; (4)Endpoint Linearity; (5)Low Power Consumption; (6)Monotonicity Guaranteed (Full Temperature Range); (7)Latch Free (No Protection Schottky Required).

Diagrams

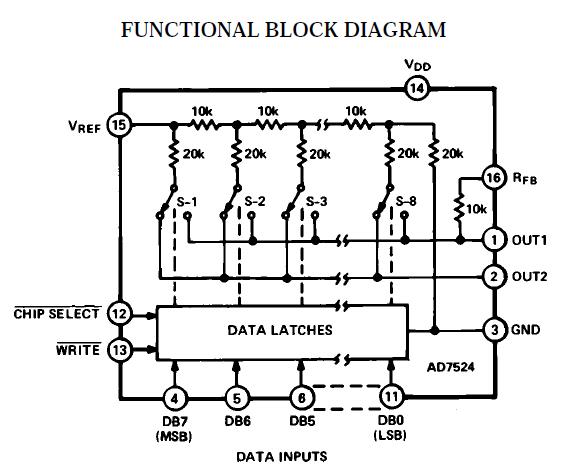

AD7524JRZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7524JRZ
AD7524JRZ

IC DAC 8BIT MULTIPLYING 16-SOIC
Data Sheet
0-1: $5.40
1-10: $4.86
10-100: $4.00
100-250: $3.67
250-500: $3.35
500-1000: $2.92
1000-2500: $2.88
AD7524JRZ-REEL
AD7524JRZ-REEL

IC DAC 8BIT MULTIPLYING 16-SOIC
Data Sheet
0-2500: $2.88
AD7524JRZ-REEL7
AD7524JRZ-REEL7

IC DAC 8BIT MULTIPLYING 16-SOIC
Data Sheet
0-1000: $2.92
