Product Summary
The AD7817BRZ is a 10-bit, single- and 4-channel A/D converter with on-chip temperature sensor that can operate from a single 2.7V to 5.5 V power supply. Each part contains a 9 μs successive-approximation converter based around a capacitor DAC, an on-chip temperature sensor with an accuracy of ±2℃, an on-chip clock oscillator, inherent track-andhold functionality and an on-chip reference (2.5 V). The AD7817BRZ is a temperature monitoring only device in a SOIC/MSOP package. The applications of the AD7817BRZ include Data Acquisition Systems with Ambient Temperature, Monitoring, Industrial Process Control, Automotive, Battery Charging Applications.
Parametrics
AD7817BRZ absolute maximum ratings: (1)VDD to AGND: -0.3 V to +7 V; (2)VDD to DGND: -0.3 V to +7 V; (3)Analog Input Voltage to AGND, VIN1 to VIN4: -0.3 V to VDD + 0.3 V; (4)Reference Input Voltage to AGND2: -0.3 V to VDD + 0.3 V; (5)Digital Input Voltage to DGND: -0.3 V to VDD + 0.3 V; (6)Digital Output Voltage to DGND: -0.3 V to VDD + 0.3 V; (7)Storage Temperature Range: -65℃ to +150℃; (8)Junction Temperature: 150℃; (9)TSSOP, Power Dissipation: 450 mW.
Features
AD7817BRZ features: (1)10-Bit ADC with 9 s Conversion Time; (2)One (AD7818) and Four (AD7817) Single-Ended Analog Input Channels; (3)The AD7816 Is a Temperature Measurement Only Device; (4)On-Chip Temperature Sensor, Resolution of 0.25℃; ±2℃ Error from –40℃ to +85℃; -55℃ to +125℃ Operating Range; (5)Wide Operating Supply Range, 2.7 V to 5.5 V; (6)Inherent Track-and-Hold Functionality; (7)On-Chip Reference (2.5 V ± 1%); (8)Overtemperature Indicator; (9)Automatic Power-Down at the End of a Conversion; (10)Low Power Operation, 4 μW at a Throughput Rate of 10 SPS; 40 μW at a Throughput Rate of 1 kSPS; 400 μW at a Throughput Rate of 10 kSPS; (11)Flexible Serial Interface.

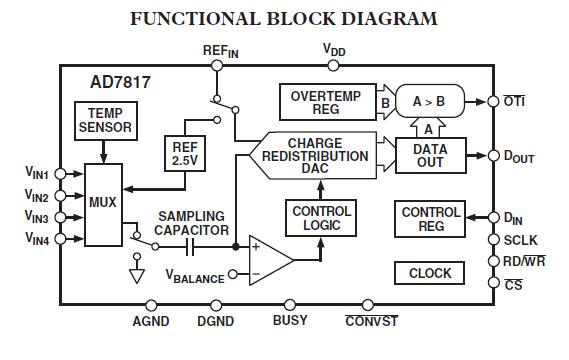

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7817BRZ |
|
IC ADC 10BIT W/TEMP SNSR 16-SOIC |
Data Sheet |
|
|
||||||
|
AD7817BRZ-REEL |
|
IC ADC 10BIT W/TEMP SNSR 16-SOIC |
Data Sheet |
|
|
||||||
|
AD7817BRZ-REEL7 |
|
IC ADC 10BIT W/TEMP SNSR 16-SOIC |
Data Sheet |
|
|
||||||
