Product Summary
The AD7875KRZ is a fast, complete, 12-bit A/D converter. It consists of a track/hold amplifier, 8-successive-approximation ADC, 3 V buried Zener reference and versatile interface logic. The AD7875KRZ features a self-contained internal clock which is laser trimmed to guarantee accurate control of conversion time. No external clock timing components are required; the on-chip clock may he overridden by an external clock if required.
Parametrics
AD7875KRZ absolute maximum ratings: (1)VDD to AGND: -0.3 V to +7 V; (2)VSS to AGND: +0.3 V to -7 V; (3)AGND to DGND: -0.3 V to VDD +0.3 V; (4)VIN to AGND: -15 V to +15 V; (5)REF OUT to AGND: 0 V to VDD; (6)Digital Inputs to DGND: -0.3 V to VDD +0.3 V; (7)Digital Outputs to DGND: -0.3 V to VDD +0.3 V; (8)Operating Temperature Range: 0 to +70℃; (9)Storage Temperature Range: -65 to +150℃.
Features
AD7875KRZ features: (1)Complete Monolithic 12-Bit ADC with: 2 ms Track/Hold Amplifier; 8 ms A/D Converter; (2)On-Chip Reference; (3)Laser-Trimmed Clock; (4)Parallel, Byte and Serial Digital Interface; (5)72 dB SNR at 10 kHz Input Frequency; (6)57 ns Data Access Time; (7)Low Power: -60 mW typ; (8)Variety of Input Ranges.

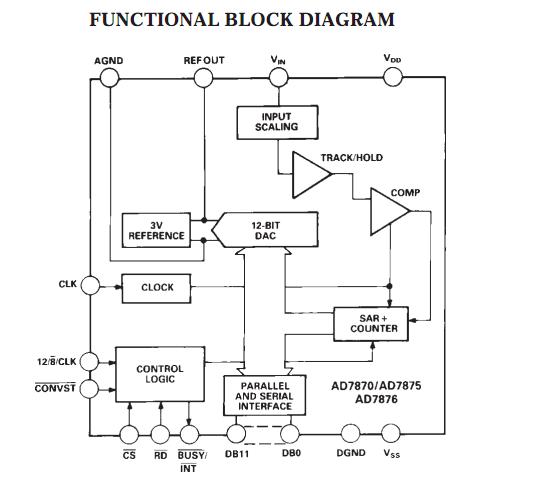

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD7875KRZ |
IC ADC 12BIT SAMPLING 5V 24SOIC |
Data Sheet |
|
|
||||||||||||||||||||
