Product Summary
The AD8032ARZ is a single supply voltage feedback amplifier featuring high-speed performance with 80MHz of small signal bandwidth, 30 V/ms slew rate and 125 ns settling time. This performance of the AD8032ARZ is possible while consuming less than 4.0 mW of power from a single +5 V supply. These features increase the operation time of high speed battery-powered systems without compromising dynamic performance. The applications of AD8032ARZ include High speed, battery-operated systems, High component density systems, Portable test instruments, A/D buffers, Active filters, High speed, set-and-demand amplifiers.
Parametrics
AD8032ARZ absolute maximum ratings: (1)Supply Voltage: +12.6 V; (2)Internal Power Dissipation, Plastic DIP Package (N): 1.3 Watts; (3)Small Outline Package (R):0.8 Watts; (4)mSOIC (RM): 0.6 Watts; (5)SOT-23-5 (RT): 0.5 Watts; (6)Input Voltage (Common-Mode): ±VS ± 0.5 V; (7)Differential Input Voltage: ±3.4 V; (8)Output Short Circuit Duration: Observe Power Derating Curves; (9)Storage Temperature Range (N, R, RM, RT): –65℃ to +125℃; (10)Lead Temperature Range (Soldering 10 sec): +300℃.
Features
AD8032ARZ features: (1)Low Power; (2)High Speed and Fast Settling on +5 V; (3)Rail-to-Rail Input and Output; (4)Low Distortion; (5)Output Current: 15 mA; (6)High Grade Option.

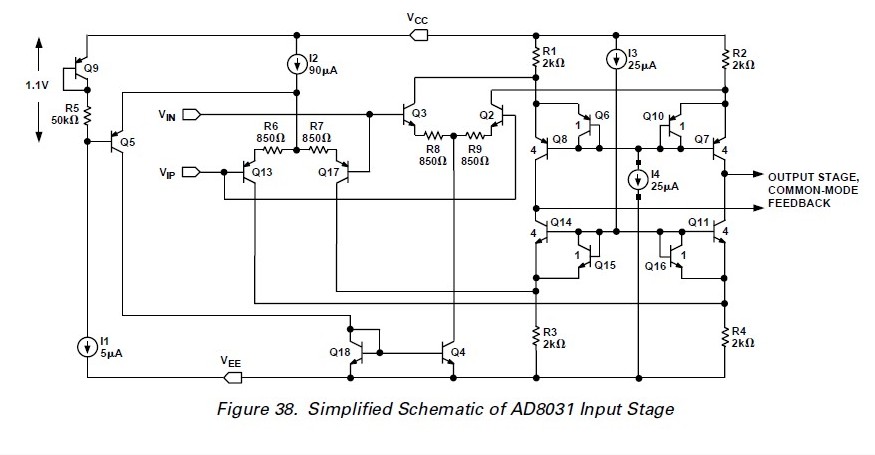

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD8032ARZ |
IC OPAMP VF R-R DUAL LP 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
AD8032ARZ-REEL |
IC OPAMP VF R-R DUAL LP 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
AD8032ARZ-REEL7 |
IC OPAMP VF R-R DUAL LP 8SOIC |
Data Sheet |
|
|
